ESX DBX-200Q - 6x9" Untersitzsubwoofer

DBX200Q BASS REFLEX SYSTEM

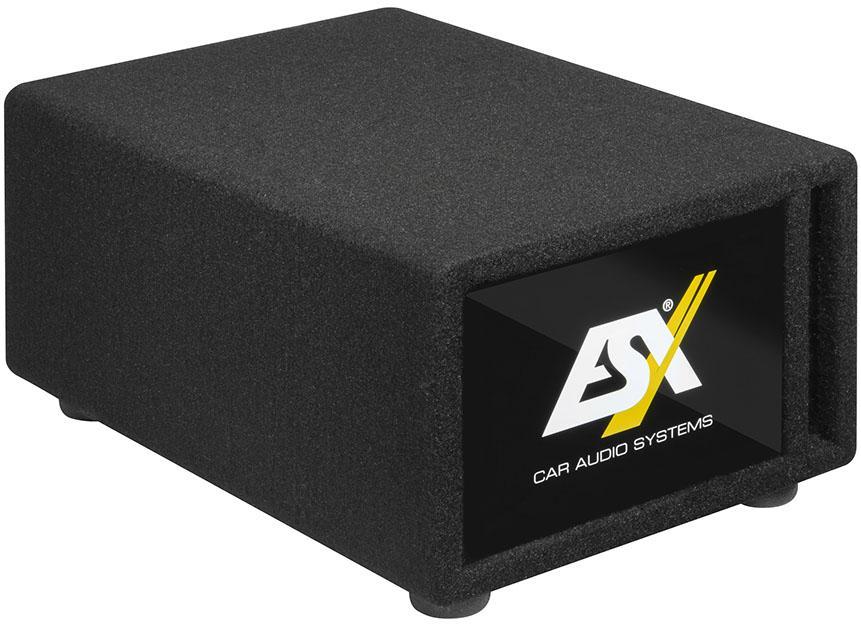

Often owners of Fiat Ducato or (identical) Citroen Jumper / Peugeot Boxer want to improve the sound of the original sound system. Since no subwoofer is installed at the factory, the sound in the bass range in particular leaves a lot to be desired. This is remedied by the compact bass reflex system DBX200Q, which you can simply place somewhere inconspicuously in the vehicle. Even better - if there is no additional battery installed under the front passenger seat, the dimensions of 36.5 x 18.5 x 26.5 cm even fit exactly into the free space under the seat.

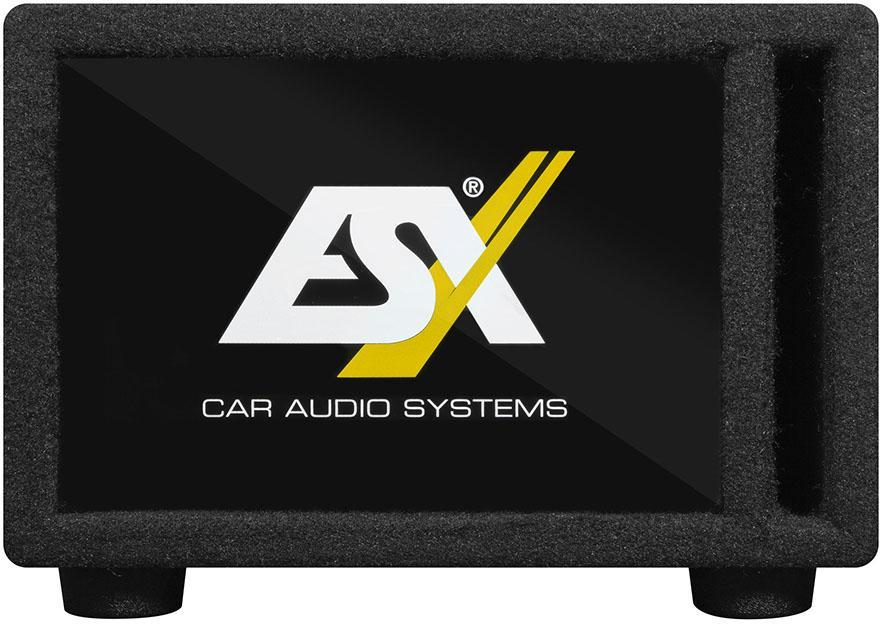

The very compact DBX200Q system can also be used as a retrofit box in all other vehicles. Especially due to the so-called "downfire" principle, i.e. the radiation of the subwoofer downwards, it produces very powerful basses as high tones are eliminated. The box with fine acrylic glass and the ESX logo sets a visual highlight, the woofer itself is through protected a stable grid.

In addition to the conventional connection sockets, in which the 2 + 2 ohm output can also be wired to a single 4 or even 1 ohm output, the box also has the new and innovative QUICK CONNECT connection, which provides a plug & play connection with each amplifier via a 4 -fold Molex socket enables. This requires special QC subwoofer cables, which are available in 4 different lengths.

DBX200Q - 15 x 23 cm (6 x 9 ”) bass reflex system for Fiat Ducato platform and others

• Power handling 200/400 watts RMS / max.
• Impedance 2 + 2 ohms
• Bass reflex port on the side
• Subwoofer with scooped paper membrane
• Stable perforated metal grille to protect the subwoofer
• QUICK CONNECT socket
• Dimensions: 36.5 x 18.5 x 26.5 cm

Compatibility (space under the passenger seat)

• Fiat Ducato III (type 250, from 2006), Ducato IV (type 290, from 2015)
• Citroën Jumper II (Type 250, from 2006), Jumper III (Type 290, from 2015)
• Peugeot Boxer II (Type 250, from 2006), Boxer III (Type 290, from 2015) and others ...
