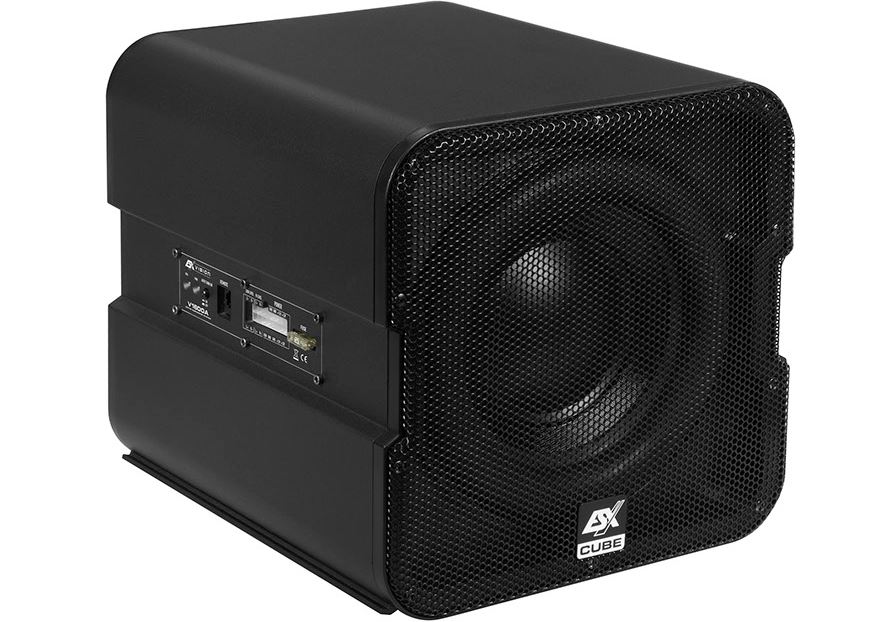

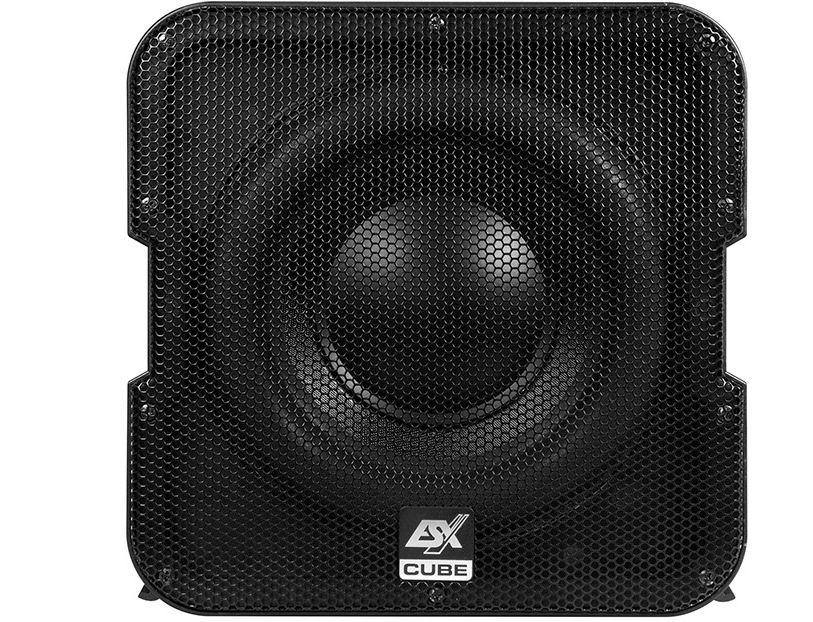

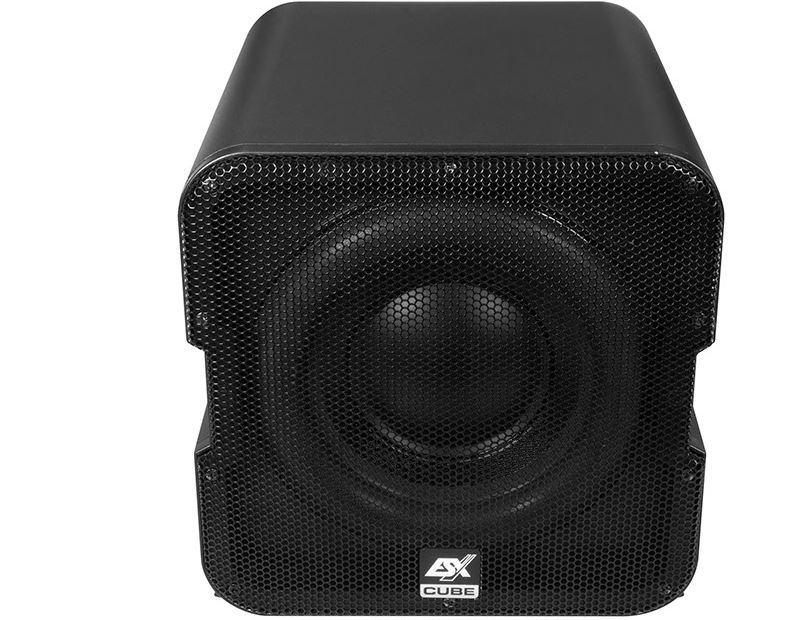

ESX V1600A - 20cm Active Subwoofer

VISION V1600A ACTIVE SUBWOOFER SYSTEM

The VISION series gains top-class growth with the completely newly developed active subwoofer box V1600A. During the development of this sound system, particular attention was paid to rich and precise bass with small housing dimensions, which was optimally implemented with the optimally matched 20 cm (8 “) active woofer and the same-sized, opposite passive woofer. Compared to conventional bass reflex systems, this concept ensures more deep bass with less noise at a relatively small volume. The compact but extremely solid housing of the ESX CUBE is made of 5 mm thick continuous cast aluminum. The two sturdy protective grids protect the woofers. Thanks to the sophisticated assembly system, the "wonder cube" is very easy to assemble. A stable base plate with guide strips is fixed in the trunk and the housing is simply pushed onto it. The advantage here is that the sound system can be removed from the vehicle at any time if the space is needed for a short time elsewhere. The integrated Class A / B amplifier is equipped with high-level inputs and an automatic switch-on function and delivers up to 300 watts of music power. With the enclosed cable remote control, the bass level, the low pass filter and the phase position can be regulated.

V1600A - 20 cm (8 “) active subwoofer system with opposite 20 cm (8“) passive radiator

• Integrated Class A / B amplifier
• 1 x 150/300 watts RMS / max.
• LP 50-150 Hz
• Bass Boost 0-12dB at 45 Hz
• Subsonic filter 25 Hz fixed
• Phase switch 0/180 °

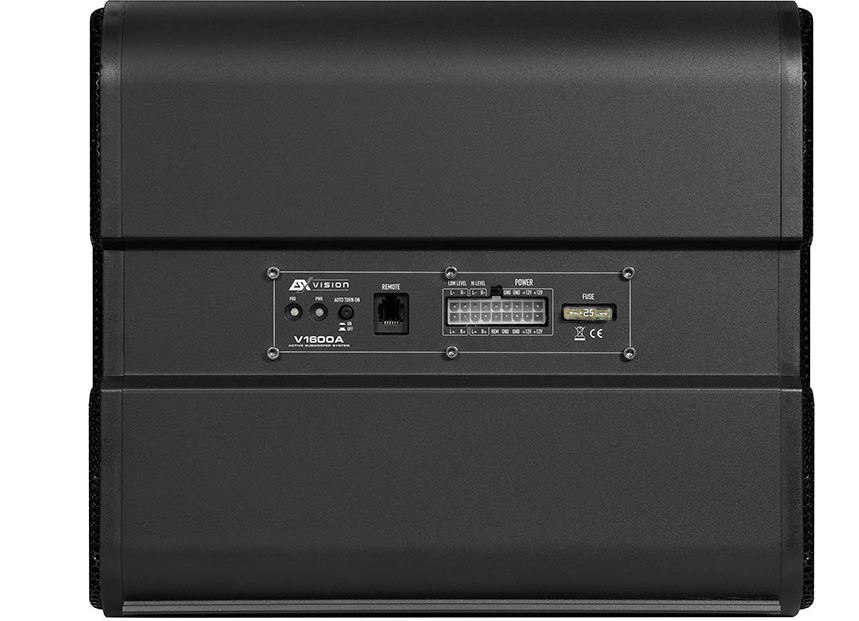

• High level inputs, RCA / RCA inputs
• Automatic switch-on function

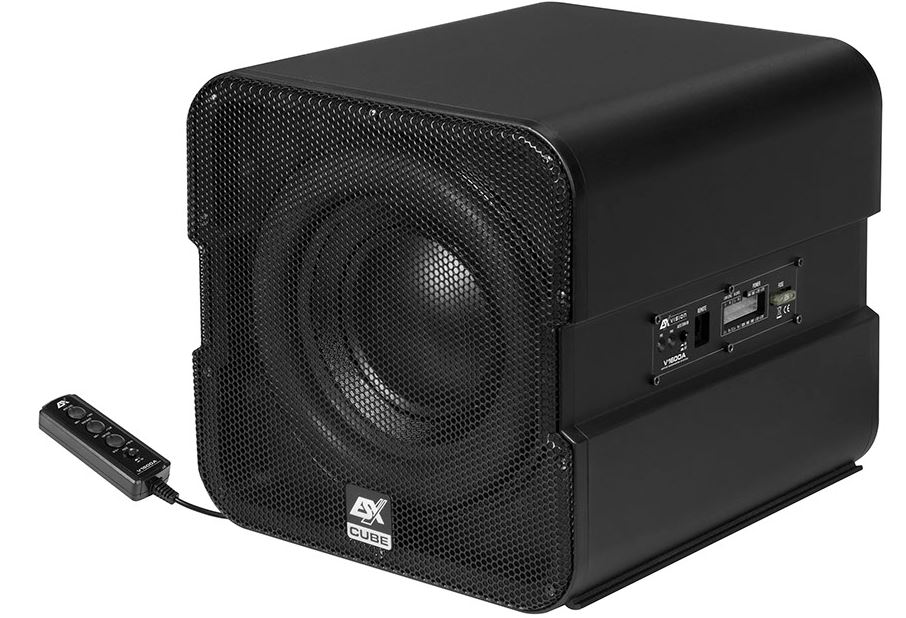

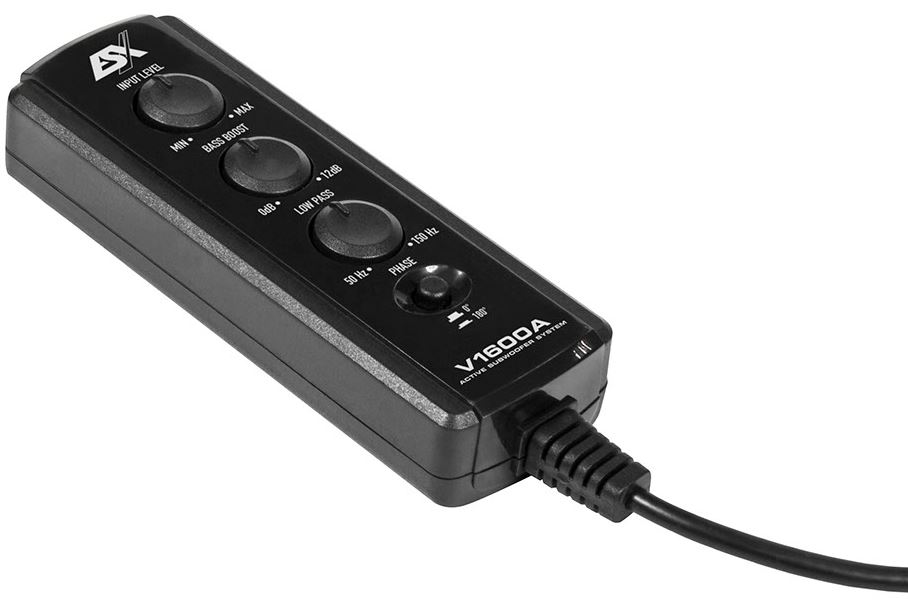

• Cable remote control for bass level,
• Input level and phase position
• Dimensions: 291 x 251 x 256 mm
