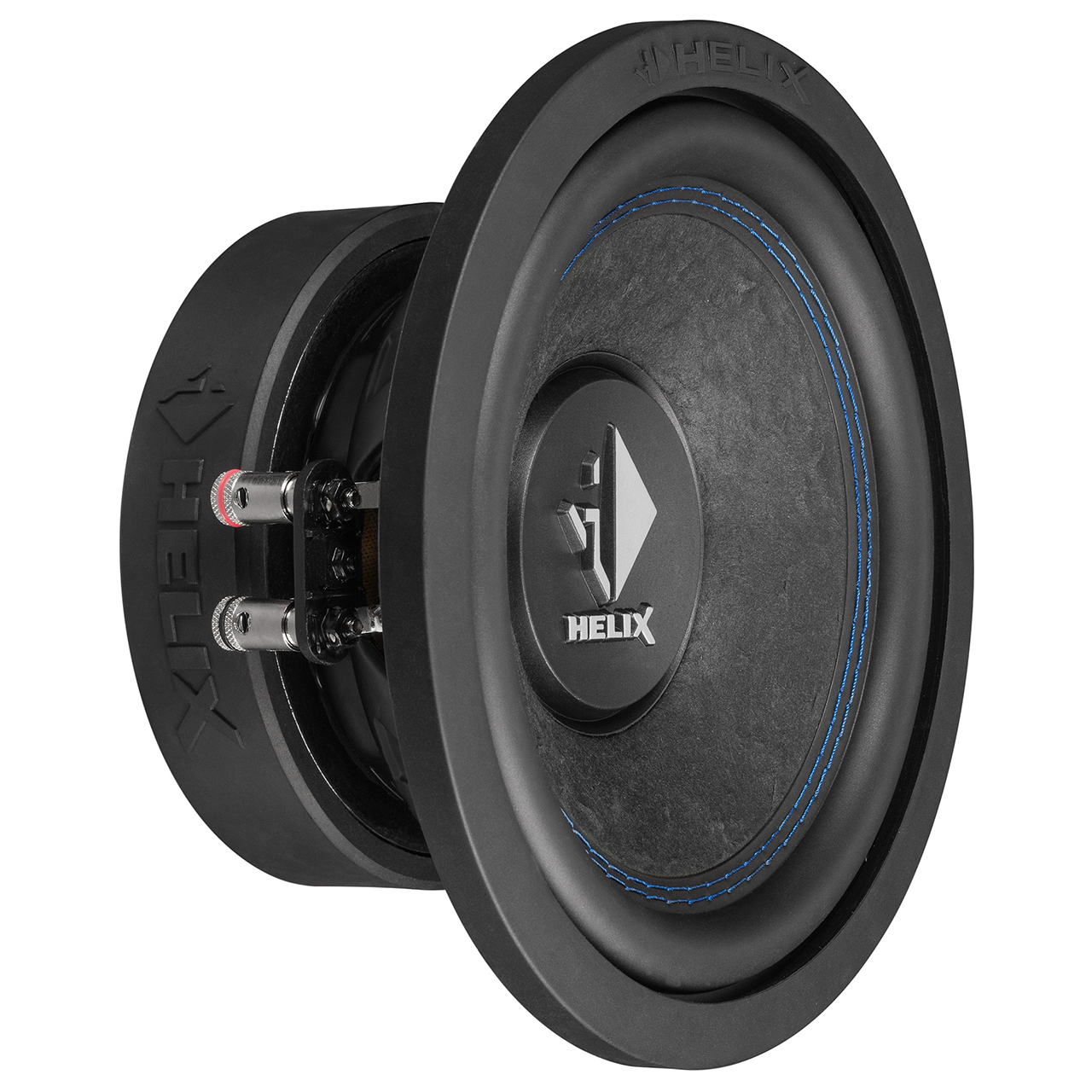

HELIX K 8W
Rich deep bass from compact dimensions
The chassis of the K-Subwoofer series all allow the use in very compact housings in which they play grandiosely with extraordinary bass performance. Especially when it comes to making optimal use of the available space in the vehicle with an individual subwoofer housing shape, these woofers open up completely new possibilities without having to make any acoustic compromises.
Clever down to the last detail
The extremely hard membrane made of hand-made paper fibers in combination with the heavy-duty drive system not only converts amplifier power casually and without compression effects into powerful sound pressure, but also scores points in terms of sound with subtle beats.
Maximum flexible connection - 2 x 2 or 1 x 2 ohm
The drivers of the K subwoofer series are available with 1 x 2 ohm voice coil (SVC2) or alternatively 2 x 2 ohm double voice coil (DVC2). So there is always the right woofer for every conceivable amplifier configuration - whether monoblock, two-channel power amplifier or multi-channel amplifier - in order to be able to get the maximum performance out of it.
"All inclusive" for the do-it-yourself

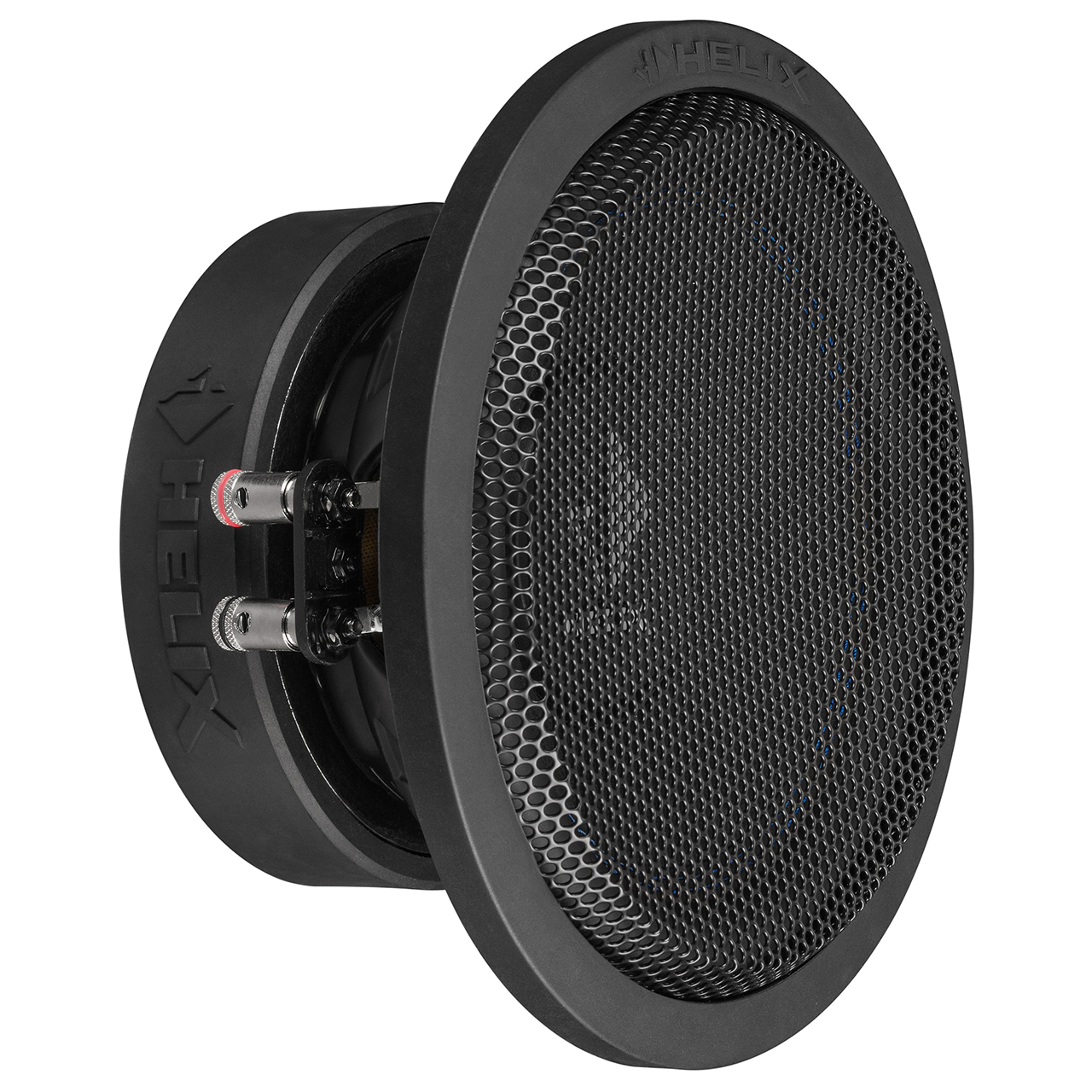

A solid protective grille and a cover ring are of course included in the scope of delivery.
For optimal bass performance with DIY installations, our technical data sheet contains recommendations for closed and bass reflex enclosures with all parameters such as net volume, tunnel tuning frequency and DSP -Settings.
Features

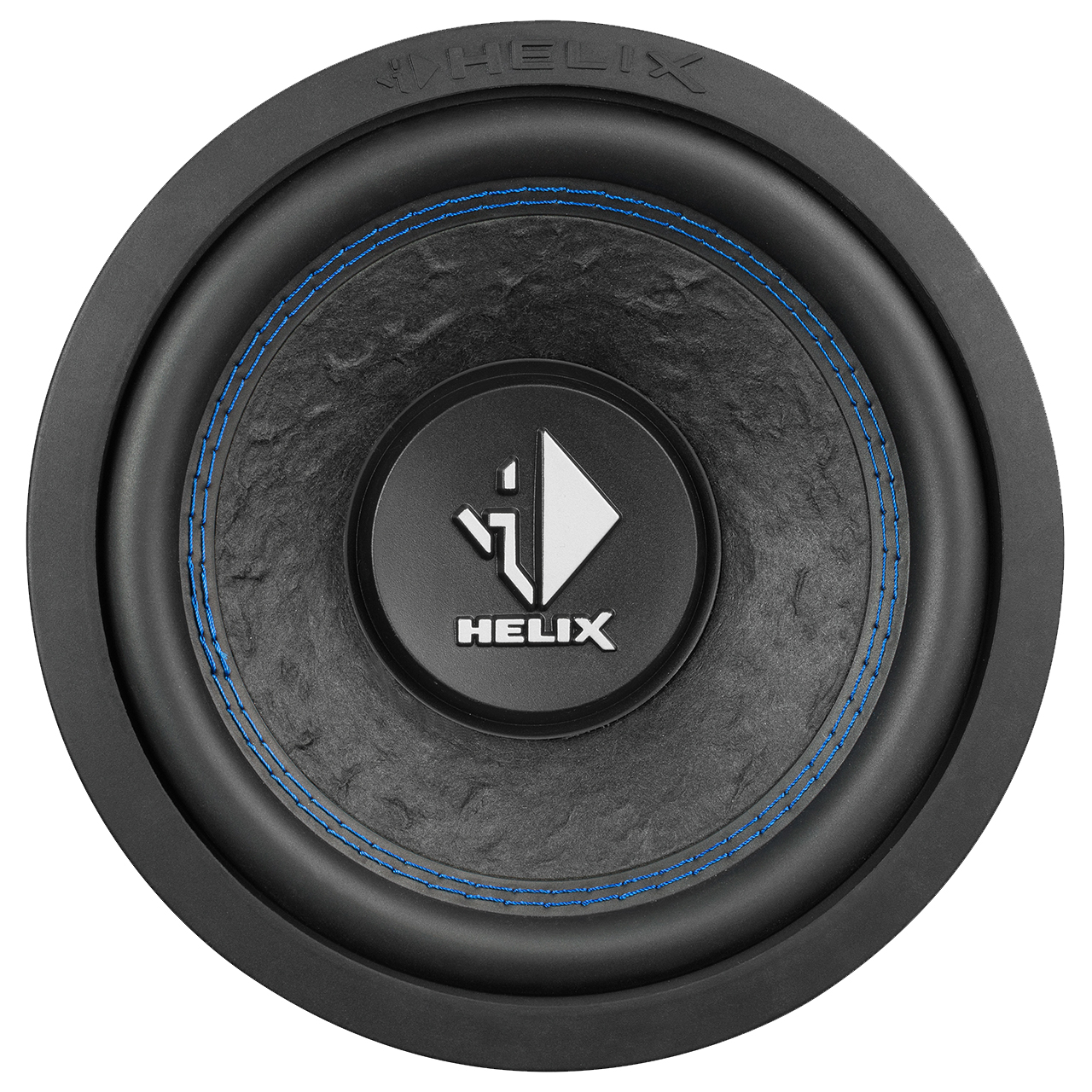

- Enormously torsion-resistant, handmade paper cone
- Dual ventilation of the voice coil for minimal compression effects
- Long-travel rubber surround for maximum mechanical resilience
- Very large linear stroke
- 1 x 2 ohm voice coil
- Solid print terminals
- Powerful magnet system optimized for compact bass reflex housing
- Robust magnet cover with HELIX lettering to protect the magnet
- Grid and cover ring included
Specifications
| K 8W DVC2 - 2 x 2 Ohm | ||
| Power RMS / Max. | P | 300 / 600 watts |
| Impedance | Z | 2 x 2Ω |
| DC resistance | Re | 2 x 1.6Ω |
| Resonance frequency | Fs | 37Hz |
| Mechanical Quality | Qms | 3.56 |
| Electrical Grade | Qes | 0.46 |
| Overall quality | Qts | 0.41 |
| Compliance | Cms | 262 μm/N |
| equivalent volume | Vas | 17L |
| Force Factor | B*I | 10.7 Tm |
| Efficiency 1 W / 1 m | SPL | 86.0dB |
| membrane area | Sd | 219 cm² |
| Moved mass | Mms | 69g |
| Membrane Material | Handmade Paper Cone | |
| Mechanical resistance | Rms | 4.54kg/s |
| Voice coil diameter | ø | 50.8mm |
| Voice coil winding width | 24mm | |
| Max. linear diaphragm stroke | Xmax | +/- 8.0mm |
| Outside diameter | ø | 213mm |
| Installation diameter | ø | 182mm |
| Installation depth | 101mm | |
| Recommended Case Volumes | ||
| Closed housing | ||
| Net volume | 8L | |
| Lower cutoff frequency (-3dB) | 50Hz | |
| Recommended DSP Settings | Recommended "Self-Define" high-pass filter with 50 Hz cutoff frequency and Q = 1.5, Additional EQ filter 115 Hz / Q = 1.0 / -2 .5dB | |
| Bass reflex enclosure | ||
| Net volume | 8 L | |
| Reflex channel diameter | ø | 60mm |
| Reflex Channel Face | 28 cm² | |
| Reflex channel length | 42 cm angled | |
| Tunnel tuning frequency | Fb | 43Hz |
| Lower cutoff frequency (-3dB) | 45Hz | |
| Recommended DSP Settings | Recommended "Self-Define" high-pass filter with 43 Hz cutoff frequency and Q = 1.5, Additional EQ filter 120 Hz / Q = 0.8 / -3 .5dB |
Scope of delivery
1 x subwoofer HELIX K 8W [SVC2]
1 x grille
1 x cover ring
1 x data sheet
| quantity: | 1 piece |
| Diameter (in cm): | 20,0 |
| Impedance (in Ohm): | 2,0 |
| Peak Power (in Watt): | 600 |
| Power RMS (in Watt): | 300 |
| Product group: | Spare Wheel Hollow |
| Subwoofer Features: | double membrane |
