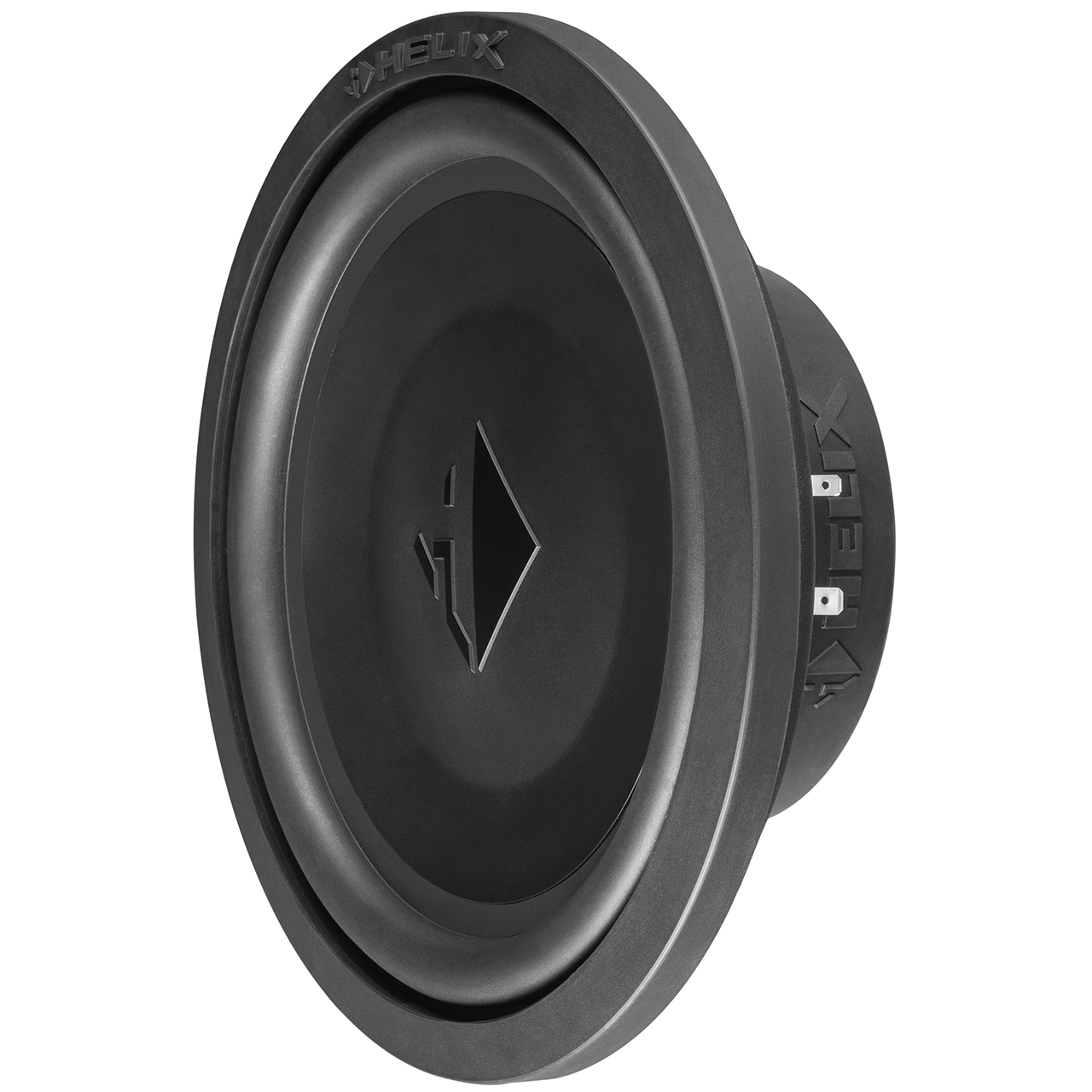

Product information Helix IK S10 - 25cm subwoofer
Flat design - deep bass
With the HELIX IK S subwoofers, the realization of particularly flat and compact housing designs is no longer a problem.
The extremely low installation depth opens up new installation options that do not require any acoustic compromises.
But above all, thanks to the use of large voice coils and the low resonance frequency, the HELIX IK S series delivers an absolutely superior bass performance that is in no way inferior to larger woofers.
Attention to detail and clearly thought out
The extremely torsion-resistant sandwich paper membrane in conjunction with our heavy-duty drive system converts amplifier power into powerful sound pressure in no time at all without compression effects, but also demonstrates sensitivity with subtle beats.
Special highlight: The magnet system has a threaded hole on the back, allowing the woofer to be screwed to the rear panel of the housing.
Since every millimeter of depth counts in flat designs, housing vibrations are effectively reduced even with low wall thicknesses.
Flexible connection
Due to the design as a 1 x 2 Ohm (SVC2) or 2 x 2 Ohm (DVC2) variant, the right deep bass specialist can be found for every amplifier configuration in order to be able to get the maximum performance.
"All inclusive" for self-made enthusiasts

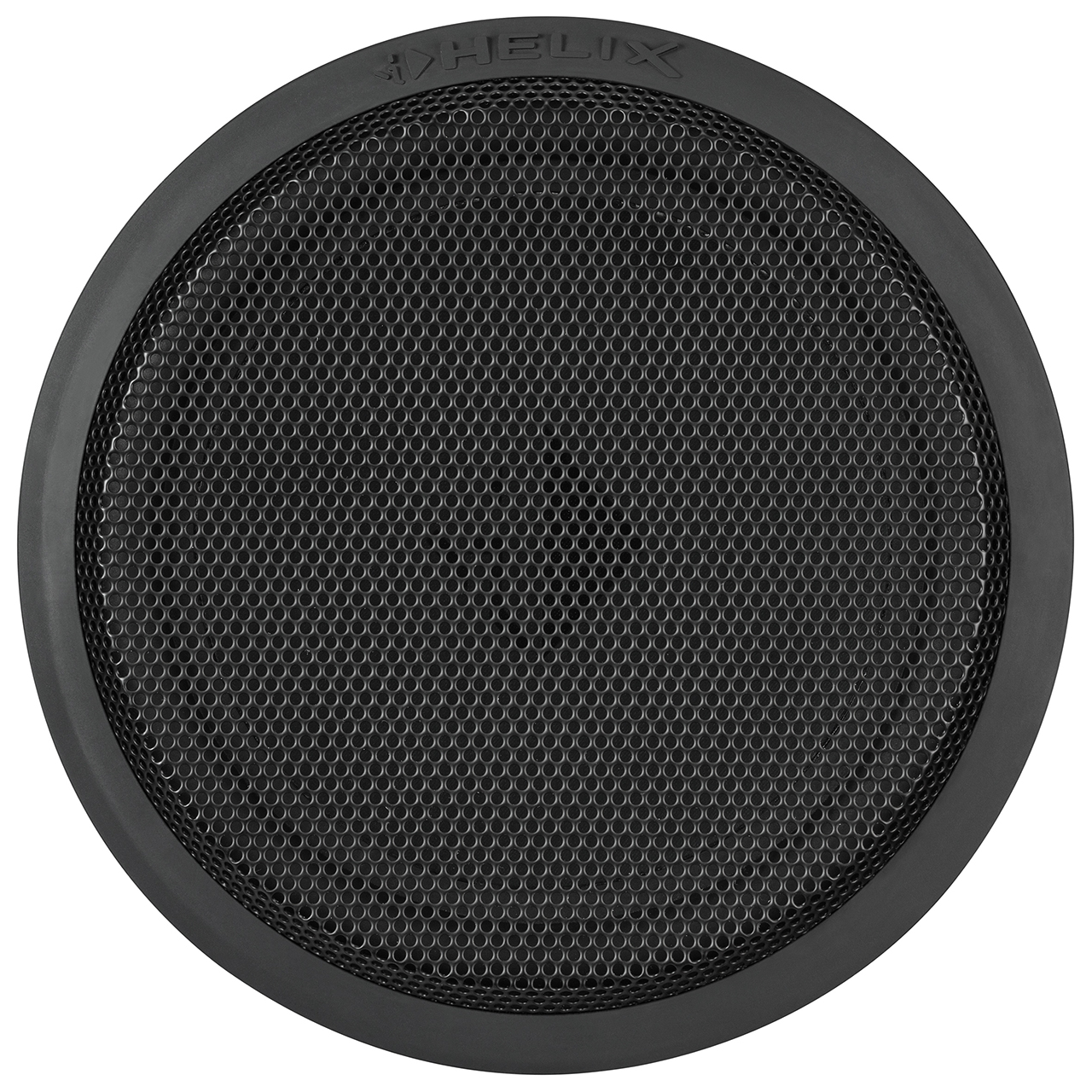

In addition to the high-quality housing connection terminal with gold-plated screw connections, a solid protective grille and a cover ring are also included in the delivery.
For optimal bass performance in DIY installations, our technical data sheet includes recommendations for closed and bass reflex enclosures with all parameters such as net volume, tunnel tuning frequency or DSP settings.
Features
- Chassis with particularly low installation depth - optimized for compact and very flat enclosure designs
- 2 x 2 Ohm double voice coil for flexible system configurations
- Magnet system with threaded hole on the back - enables screwing to the rear panel of the enclosure to stabilize and reduce enclosure vibrations
- Extremely torsion-resistant sandwich paper membrane
- Long-stroke rubber surround for maximum mechanical load capacity
- Robust magnet cover with HELIX lettering to protect the magnet
- Housing connection terminal, grille and cover ring included in delivery
Technical data
-
IK S10-DVC2 – 2 x 2 Ohm
-
Load capacity RMS / Max. P 300 / 600 Watt
-
Impedance Z 2 x 2 Ω
-
DC resistance Re 2 x 1.6 Ω
-
Resonance frequency Fs 34 Hz
-
Mechanical quality Qms 6.37
-
Electrical quality Qes 0.49
-
Total quality Qts 0.45
-
Compliance Cms 198 μm/N
-
Equivalent volume Vas 34 L
-
Power factor B*I 12.7 Tm
-
Efficiency SPL 90.0 dB @ 2.83V / 1m
-
87.0 dB @ 1W / 1m
-
Membrane area Sd 353 cm²
-
Moving mass Mms 112 g
-
Membrane material Sandwich paper membrane
-
Mechanical resistance Rms 3.73 kg/s
-
Voice coil diameter ø 50.8 mm
-
Voice coil winding width 18 mm
-
Max. linear membrane stroke Xmax +/- 6.0 mm
-
Outer diameter ø 262 mm
-
Installation diameter ø 229 mm
-
Installation depth 84.5 mm
Recommended housing volumes
- Closed housing
- Net volume 14 L
- Lower cutoff frequency (-3dB) 46 Hz
- Recommended DSP settings Recommended “Self-Define” high-pass filter with 45 Hz cutoff frequency and Q = 1.3;
- Additional EQ filter 100 Hz / Q = 1.0 / -3 dB
Bass reflex housing
- Net volume 16 L
- Reflex channel diameter ø 70 mm
- Reflex channel area 38 cm²
- Reflex channel length 38 cm
- Tunnel tuning frequency Fb 37 Hz
- Lower cutoff frequency (-3dB) 39 Hz
- Recommended DSP settings Recommended “Self-Define” high-pass filter with 37 Hz cutoff frequency and Q = 1.2;
- Additional EQ filter 95 Hz / Q = 0.7 / -3 dB
Scope of delivery
- 1 x subwoofer HELIX IK S10-DVC2
- 1 x grille
- 1 x cover ring
- 1 x housing connection terminal
- 1 x data sheet
| quantity: | 1 piece |
| Diameter (in cm): | 25,0 |
| Impedance (in Ohm): | 2 x 2,0 |
| Peak Power (in Watt): | 600 |
| Power RMS (in Watt): | 300 |
| Product group: | Spare Wheel Hollow |
| Subwoofer Features: | extra flat, Wooferchassis |
