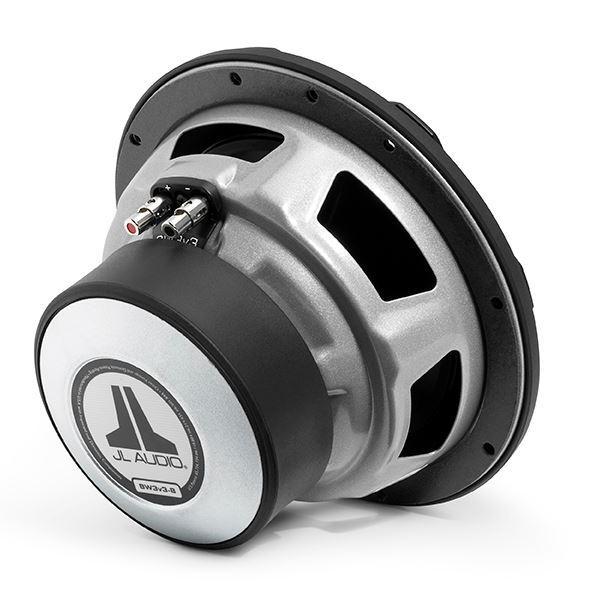

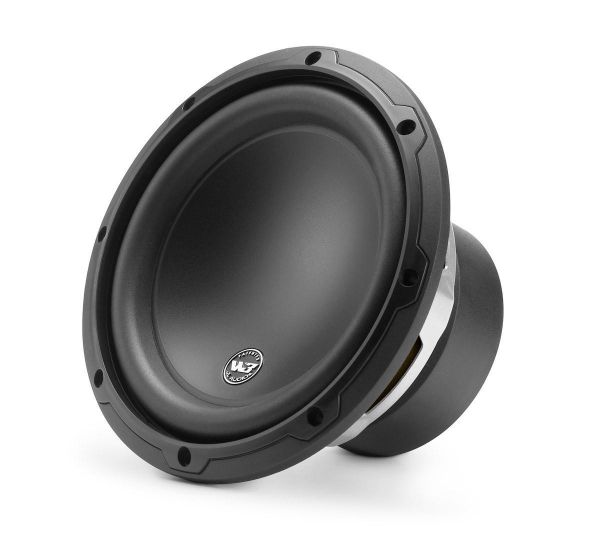

JL AUDIO 8W3v3-4 - 20cm Subwoofer

8W3v3-4
W3v3 8-inch Subwoofer Driver (250 W, 4 ohms)

If you need an 8-inch subwoofer that can create outstanding bass in extremely small enclosures, the 8W3v3 will do the job and surprise you with its power and accuracy. It employs the same technologies as its larger diameter brethren to deliver a whopping 0.375 in. (10 mm) of controlled, one-way, linear excursion.

The 8W3v3-4 is best used with amplifier power in the 75W - 250W range and is optimized to operate in a tiny 0.30 cu. ft. (8.5 l) sealed enclosure, or a 0.35 cu. ft. (9.9 l) ported enclosure.

General Specifications

• Continuous Power Handling (RMS): 250 W
• Recommended Amplifier Power (RMS): 75- 250 W
• Nominal Impedance (Znom): 4 ohms

Physical Specifications (Pict. 3)

• Nominal Diameter: 8.0 in / 200 mm
• Overall Diameter (A): 8.54 in / 217 mm
• Mounting Hole Diameter (B): 7.09 in / 180 mm
• Bolt Hole Circle Diameter (C): 7.85 in / 199 mm
• Motor Outer Diameter (D): 4.75 in / 121 mm
• Mounting Depth (E): 4.63 in / 118 mm
• Driver Displacement: 0.03 cu ft / 0.85 L
• Net Weight: 8.2 lb / 3.7 kg

Parameters

• Free Air Resonance (Fs): 35.14 Hz
• Electrical “Q” (Qes): 0.501
• Mechanical “Q” (Qms): 7.071
• Total Speaker “Q” (Qts): 0.467
• Equivalent Compliance (Vas): 0.54 cu ft / 15.29 L
• One-Way Linear Excursion (Xmax)*: 0.375 in / 10.0 mm
• Reference Efficiency (no): 0.13%
• Efficiency (1 W / 1 m)** :83.24 dB SPL
• Effective Piston Area (Sd): 32.02 sq in / 0.021 sq m
• DC Resistance (Re): 3.77 ohms

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.

Sealed Enclosure Specifications (Pict.4)

• Wall Thickness: 0.75 in / 19 mm
• Front Baffle Thickness: 0.75 in / 19 mm
• Volume (net int.): 0.30 cu ft / 8.5 L
• External Width (W): 10 in / 254 mm
• External Height (H): 10 in / 254 mm
• External Depth (D): 9.5 in / 241 mm
• F3: 54 Hz
• Fc: 58.8 Hz
• Qtc: 0.783

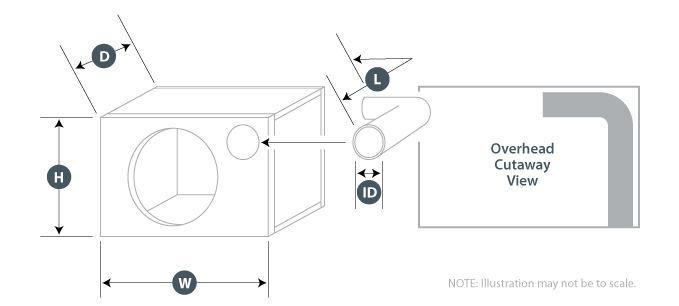

Ported Enclosure Specifications (Pict.5)

• Wall Thickness: 0.75 in / 19 mm
• Front Baffle Thickness: 0.75 in / 19 mm
• Volume (net int.): 0.35 cu ft / 9.9 L
• External Width (W): 13 in / 330 mm
• External Height (H): 10 in / 254 mm
• External Depth (D): 9.25 in / 203 mm
• Internal Port Diameter (ID): 2 in / 51 mm
• Port Length (L): 18 in / 457 mm (round port requires a 90º elbow to fit in the specified enclosure)
• Tuning Frequency (Fb): 35 Hz
• F3: 41.0 Hz

Enclosure Notes
* The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice.

Safety Notice
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.
