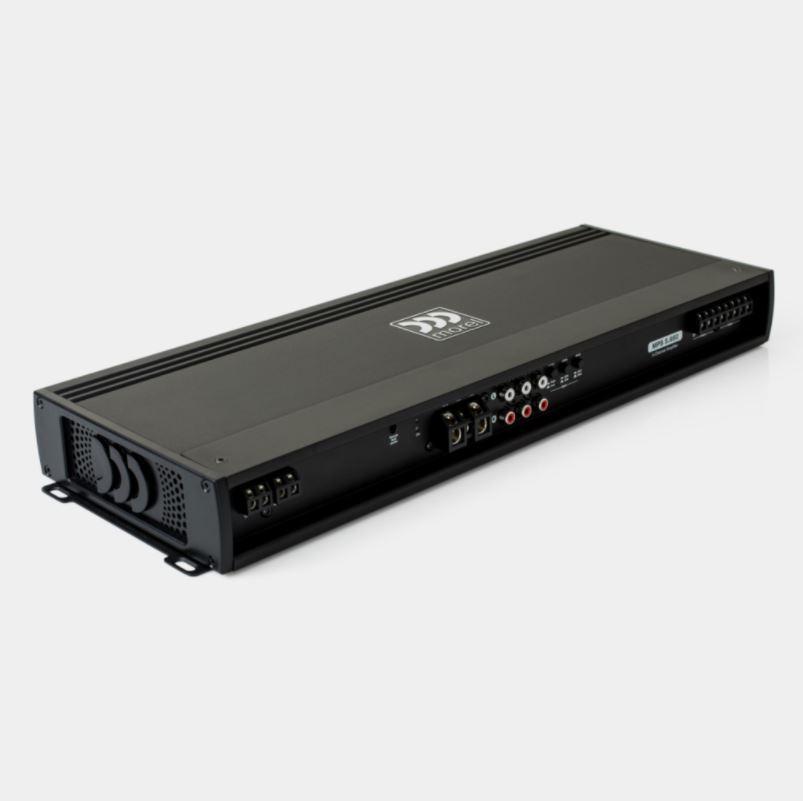

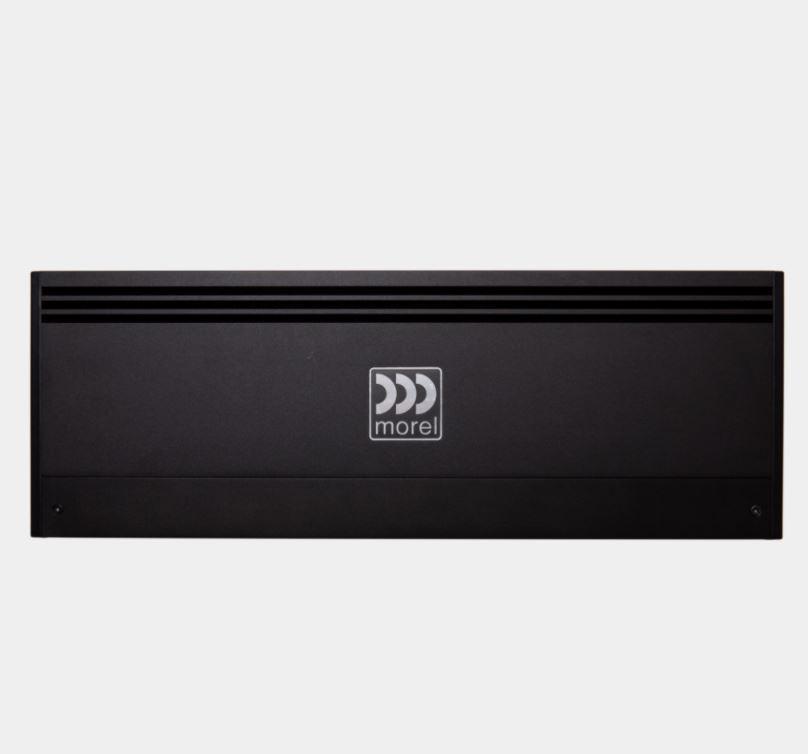

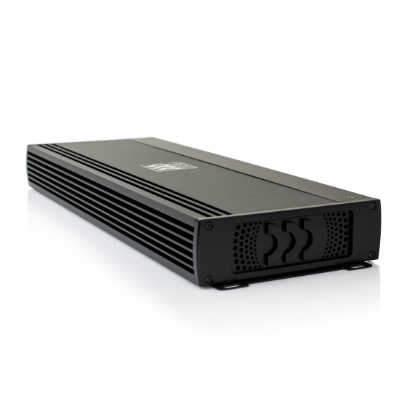

Morel MPS 5.950 - 5-Channel Amplifier

Precise design and quality components

• The MPS amplifiers have been designed with appropriate, audiophile-grade components to ensure performance at the highest level.
• The MPS features fully balanced differential inputs that provide excellent noise rejection and can withstand up to 20 volts of signal input, allowing even factory speaker level signals to be accepted through the RCA connectors.
• Texas Instruments high-fidelity operational amplifiers and ultra-low tolerance surface-mount components maintain audio signal integrity as pure as possible.
• Protection and thermal management are managed by an onboard microprocessor, allowing our engineers to design the amplifier without the need for internal fuses that tie power to the power supply

Innovation is at the heart of every Morel product

The new Morel Performance Series amplifiers have been designed with the same passion and product philosophy that Morel has led over the past 45 years. The company's R&D team has worked diligently to bring the MPS series to offer a balance of build quality, sound performance and affordability.

As a manufacturer of high-fidelity loudspeakers, Morel understands how poorly designed amplifiers and electronics can ruin a loudspeaker system's performance potential. With this in mind, the engineering guideline for the MPS amplifiers was simple: produce one Range of amplifiers that are exceptionally musical and dynamic, with clean, unadulterated performance that can push speakers to their full sonic potential.

Precise design and high-quality components

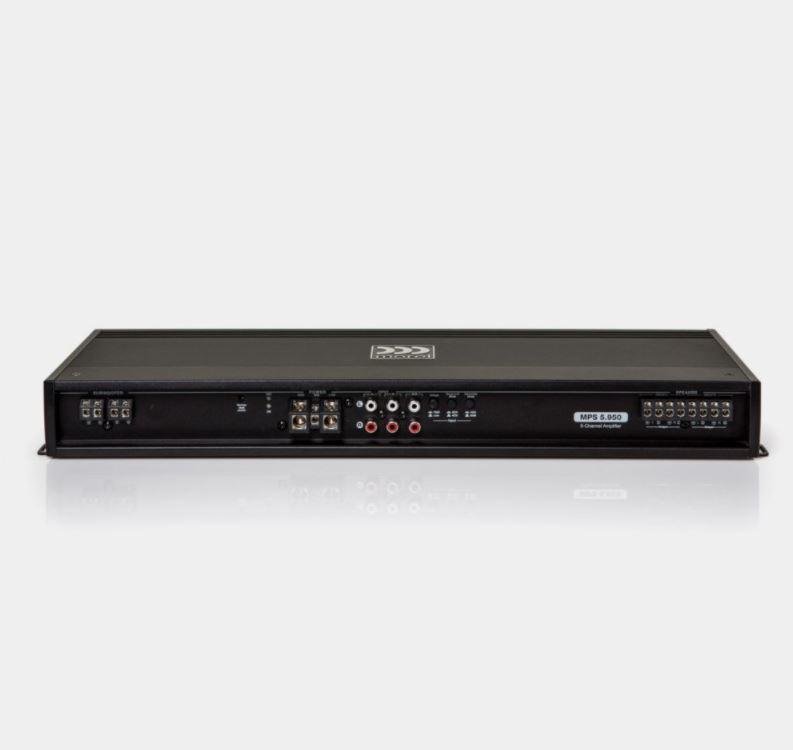

For installers, our new amplifiers offer a unique feature set and installer-friendly design. Each model uses a single-sided circuit layout with all connections on one side of the amplifier, making installation simple and clean. Tuning and adjustment options for the preamp are discreetly located under a removable panel on top of the amp.

Each amp is also designed to integrate directly into OEM audio systems via the RCA input with an adaptive connector and automatically turn on via signal detection or DC shutdown detection - features that typically found in much more expensive amps.

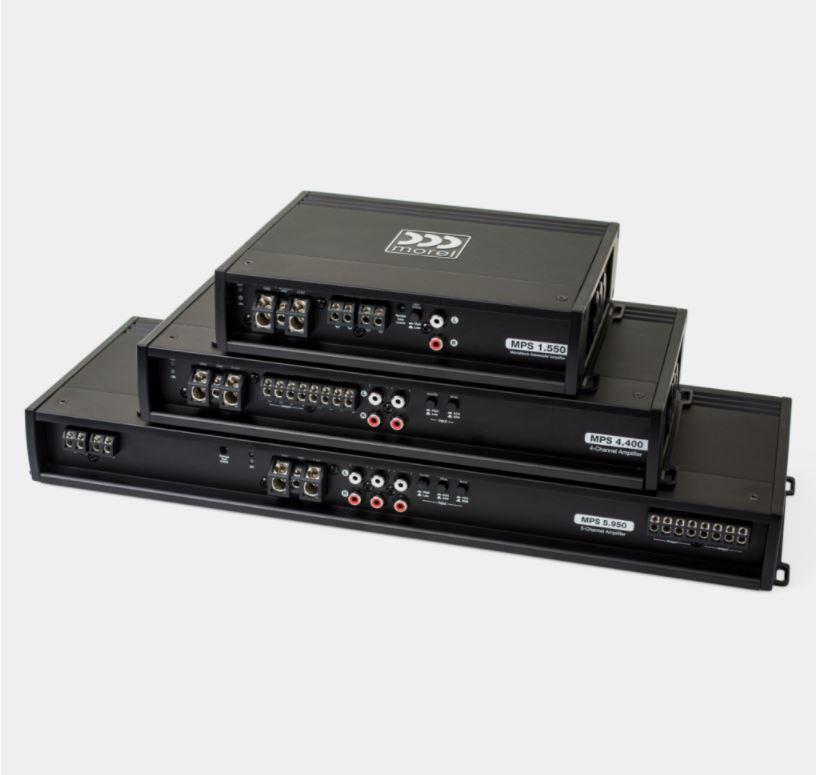

Our choice of mono, four channel and five channel amplifier configurations ensures that the MPS amplifiers will cover almost any sound system design. We also offer a two year warranty on the MPS amplifiers when powered by be installed by an authorized Morel dealer.

The MPS amps set new sonic boundaries for affordable amps and a unique feature set that puts them at the top of their game.

Specifications

RMS POWER at 14V

• 4 ohms - 4x 70W + 1x 350W
• 2 ohms - 4x 100W + 1x 550W

THD+N: 0.05% (main) 0.15% (sub)

Frequency response (main): 10Hz-30kHz

Frequency response (sub):  10-220Hz

S/N ratio (nominal, A-weighted): 100dB

Damping factor: >100 (main), >150 (sub)

Selectable input range: Yes (x1/x2/x4)

PREAMP

• HP/LP, 40Hz-400Hz
• Filter (Sub) LP, 40-220HZ
• Subwoofer level control: 0-20dB
li>
• Subsonic filter: Selectable/25Hz/35Hz

DIMENSIONS

• (H x W x L)2 in (51 mm) x 6.7 in (170 mm) x 18.29 in (464.5 mm)
