Audison SR 5.600 - 5-Kanal Verstärker

SR 5.600 - 5 CH AMPLIFIER WITH CROSSOVER

HIGH PERFORMANCE IN A COMPACT SIZE

We are proud to present the refurbished SR 5.600 (75 W x 4 + 330 W x 1 @ 4 ohms), introduced in 1988 and constantly updated with the best available technologies.

Audison_ADT

The Audison design team, headquartered in Potenza Picena (Italy), planned and perfected the new SR line for a long time, taking advantage of the features provided by the latest amplification devices available today. After numerous listening tests in a double-blind configuration with a large number of professionals and enthusiasts, the research and development team decided to introduce a new D-Class technology called ADT (Audison D-Class Technology) across the entire line of products, the this allowed you to significantly reduce the size of the amplifiers, while still maintaining the audio performance that characterizes every Audison project.

EDGELESS DESIGN

When designing the electronics, Audison Style Center paid attention to every aesthetic and functional detail, adding a compact, extruded aluminum amplifier with rounded corners that makes it easy to install the product in tight spaces. Thanks to the generous heat sinks on the two short sides of the amplifier, there is no need for internal cooling fans, which often lead to noise and dust deposits.

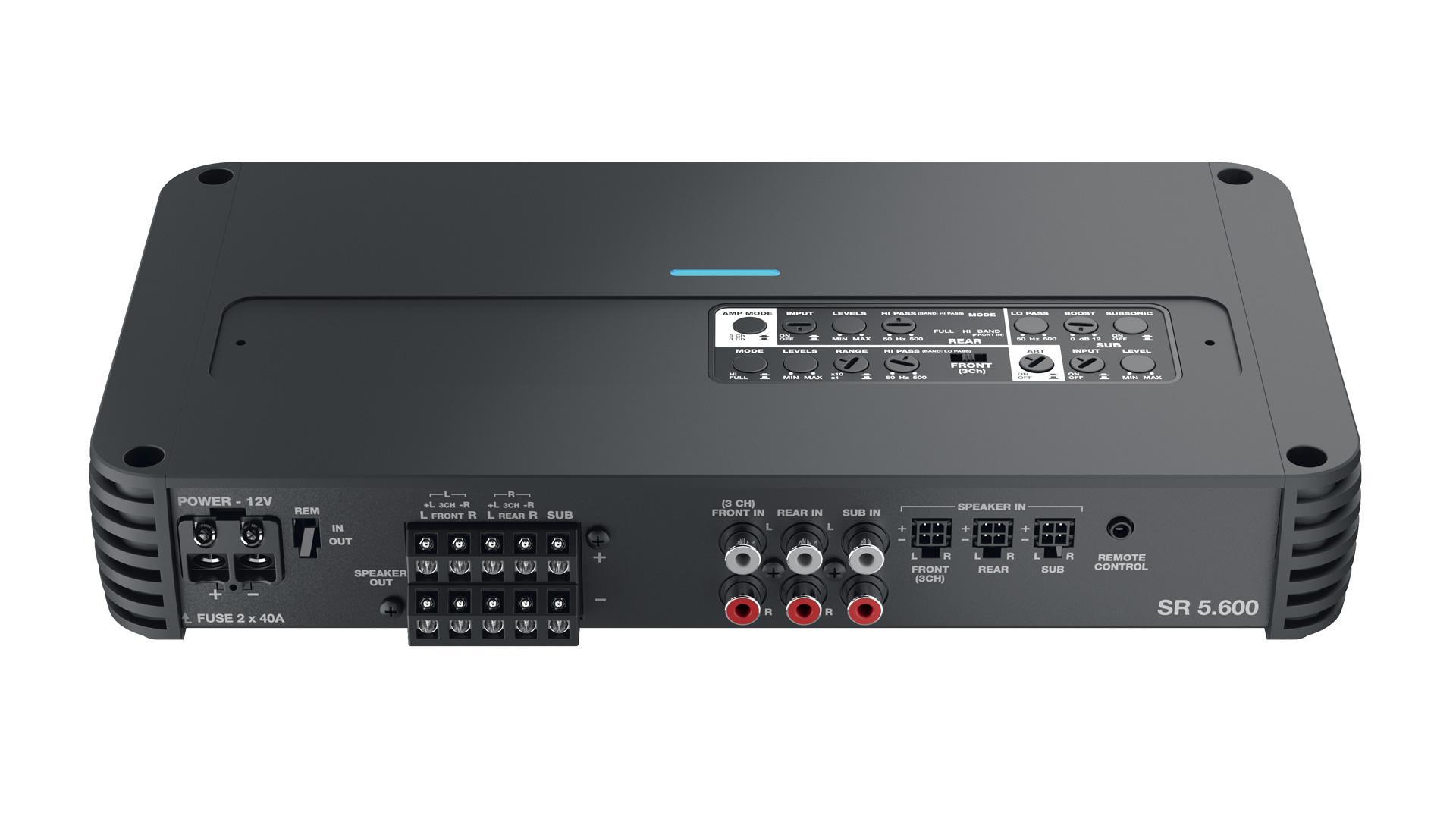

FULL CONTROLS ON THE TOP

As is customary in the tradition, the SR amplifiers confirm their versatility by including a complete filter section in all models, suitable for any type of audio system configuration. The controls, which are protected by a satined aluminum plate, are located on the top plate of the amplifier and are easily accessible from above even after the product has been installed. If the system includes an Audison bit processor, the filter section can be completely excluded.

Audison_USS

Thanks to the integration of the Audison USS (Universal Speakers Simulator) technology into the high-level inputs, the SR amplifiers can also be connected to OEM sources with the "Speaker Load Detection" function, which monitor the presence of a low-impedance load audio outputs activate.

LIMITLESS CONNECTION

All models are equipped with balanced high-level inputs for connection to the output of the OEM head-unit loudspeakers and with low RCA-level for the after-market loudspeakers. When using the high-level input, the ART (Automatic Remote Turn-On / Off) function can be activated in order to control the switching on of the amplifiers with the power button on the main unit.

There is also a remote IN / OUT socket, via which the control of several cascaded amplifiers can be switched on if required.

The SR 1.500, SR 4.300 and 4.500 models restore the PRE-OUT signal by using the Speaker-IN input to connect it to OEM sources that are only equipped with amplified outputs, which enables system expansion.

Technical specifications

OUTPUT POWER (RMS) at 14.4 VDC, 1% THD: 75 W x 4 CH + 300 x 1 CH (4 Ohm)
SN ratio (Ref. 1 W power) 75 W: 84 dBA - 300 W: 75 dBA

OUTPUT POWER (RMS) at 14.4 VDC, 1% THD: POWER W RMS

• 5 CH: 75 x 4 + 330 x 1 (4 Ohm)
• 5 CH: 115 x 4 + 550 x 1 (2 Ohm)
• 3 CH: 230 x 2 (4 ohms) + 310 W x 1 (4 ohms)
• 3 CH: 230 x 2 (4 Ohm) + 550 x 1 (2 Ohm)
