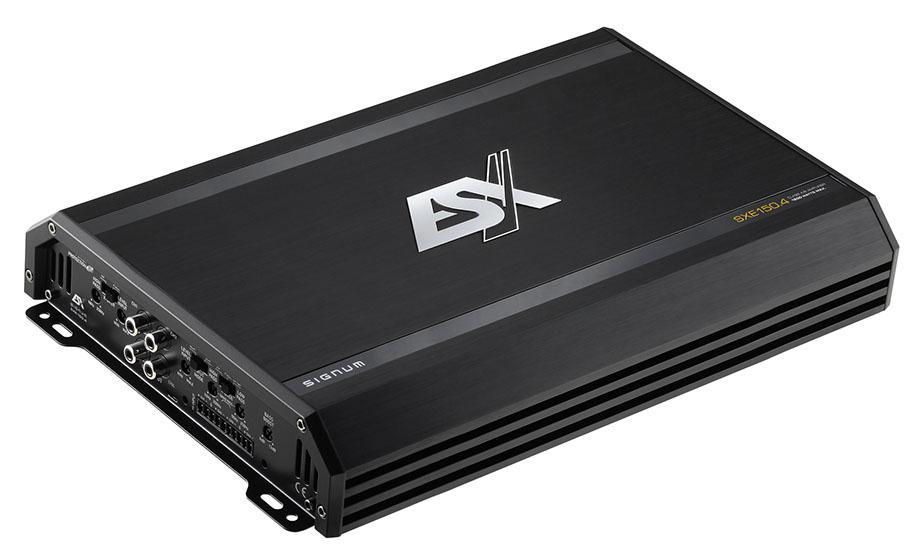

ESX SIGNUM SXE150.4 - 4-Channel Amplifier

SIGNUM SXE AMPLIFIER

The new SIGNUM SXE series is optically based on the successful HORIZON HXE series, but already shows with the massive connection terminals and the noble aluminum end panels that it plays a class higher. The new amplifiers are also the first choice in terms of sound: The high-quality NE5532 operational amplifiers in the input area ensure the finest resolutions over the entire frequency range and guarantee the lowest distortion values. The high-level inputs with automatic switch-on function were also upgraded; They are equipped with the "Error Protection System" (EPS), so that when connected to OEM factory radios, no functions are impaired or error messages are written to the vehicle memory. All models are equipped with bandpass filters. Further models of the series are planned.

• Aluminum heat sink with acrylic glass inlays and flush-cut diamond cut logo
• Aluminum frame on the end panels

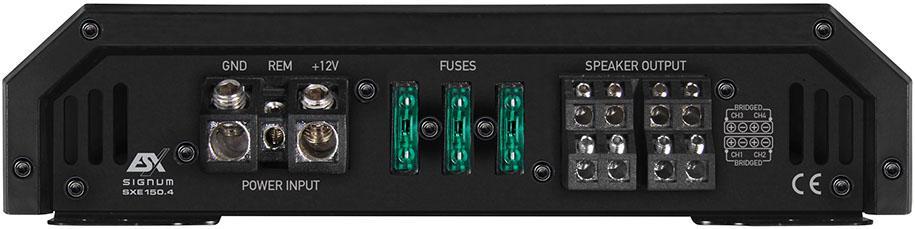

• Massive connection terminals
• Base plate with robust mounting brackets
• High level inputs with Error Protection System
• Auto turn-on via high level inputs
• MOSFET-PWM power supply, 3-way protection circuit

SXE150.4 - 4-channel Class A / B analog amplifier

• 1200 watts max output power
• 4 x 200/300 watts max. at 4/2 ohms
• 2 x 600 watts max. bridged at 4 ohms
• 4 x 100/150 watts RMS at 4/2 ohms
• 2 x 300 watts RMS bridged at 4 ohms

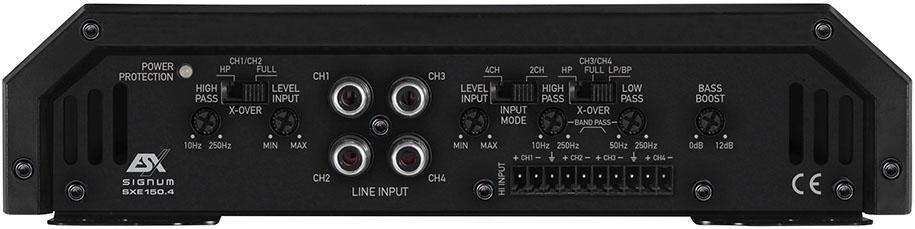

• 2 x HPF 10-250 Hz, LPF 50-250 Hz
• Bass boost 0-12 dB, bandpass mode
• High level inputs, automatic switch-on function
• Dimensions: 220 x 53 x 390 mm
• Efficiency up to 62%
