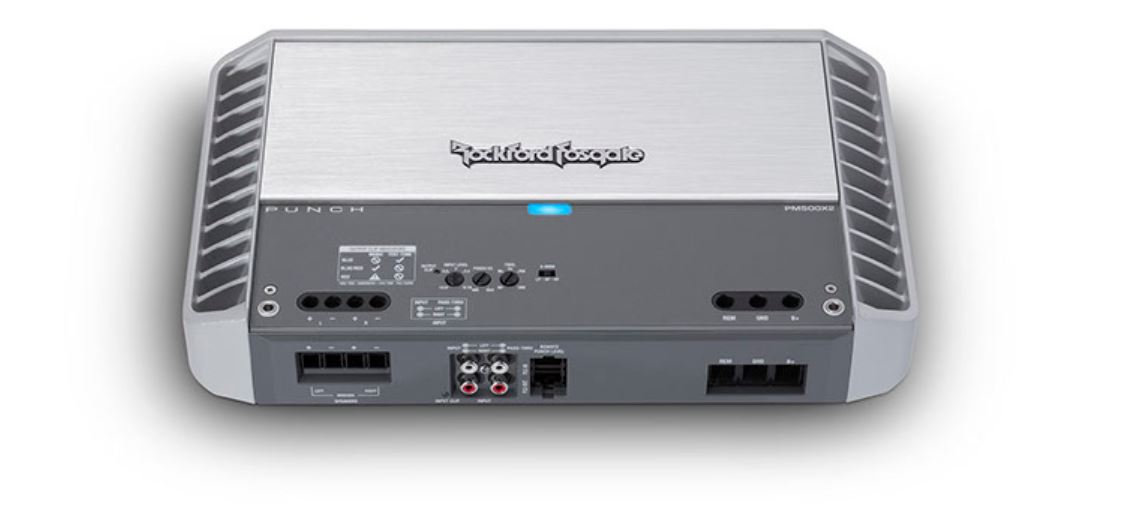

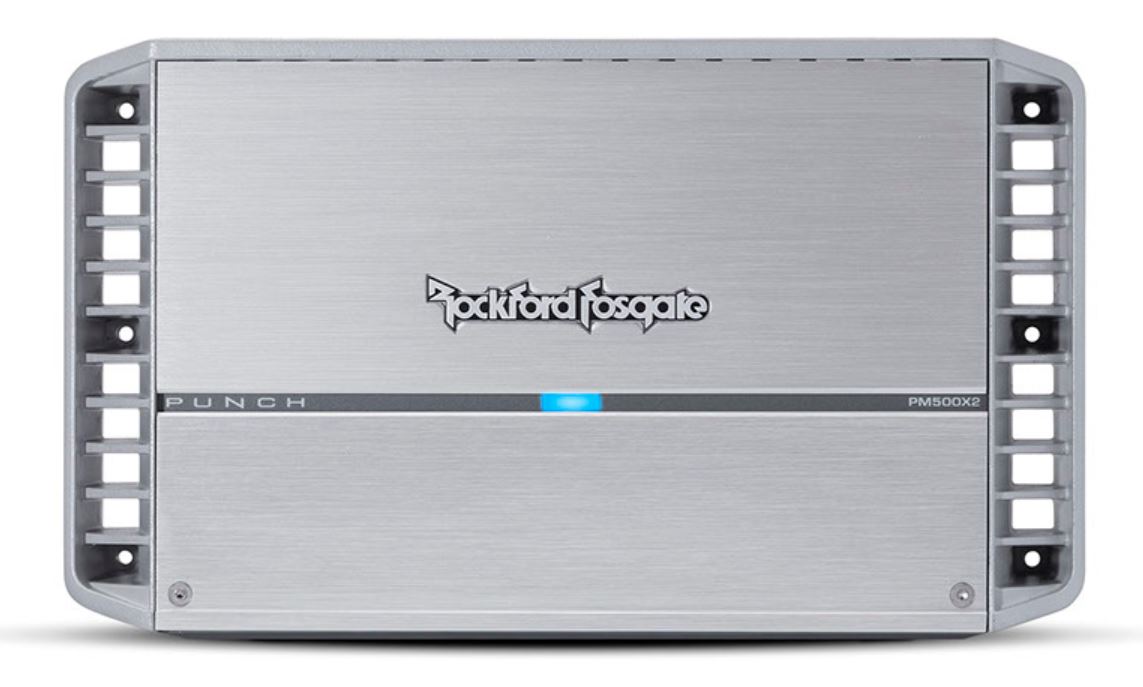

Rockford Fosgate Marine PM500x2 - 2-Kanal Verstärker

The PM500X2 is a 500 watt 2-channel amplifier with high dynamic performance using Class a / b technology and a conformally coated printed circuit board for motorsport and marine applications.

The PM500X2 is a great way to turn on your sound system without monopolizing your entire trunk - that way, you'll have more space for subs! With its massive output stage, this amplifier is best suited for driving a pair of 8-ohm SVC subwoofers or four 2-ohm DVC subwoofers. Remember to use the recommended power and speaker cables to optimize your power supply.

• High-level input with automatic switch-on
• Cinch through outputs
• Features CLEAN facility
• Optional Punch2 remote control (PLC2) ready (with input clip display)
• Butterworth crossover with 12 dB / octave
• On-board punch EQ with + 18 dB boost at 45 Hz
• Switch on muted

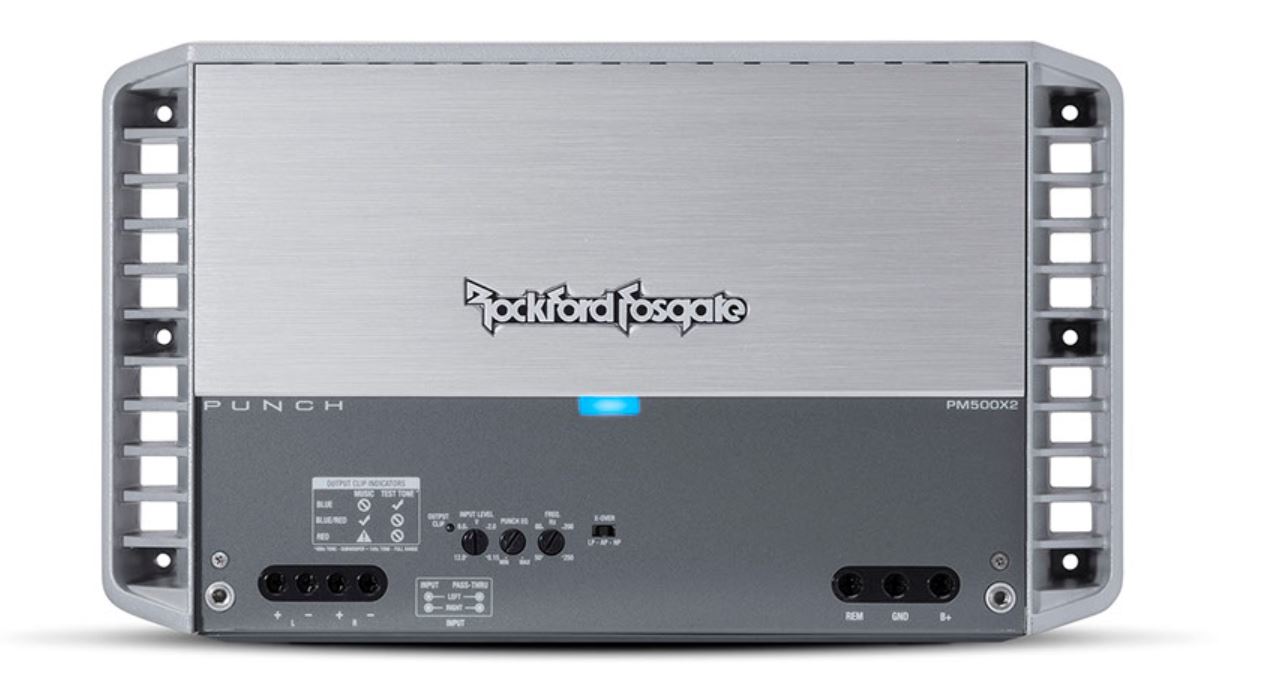

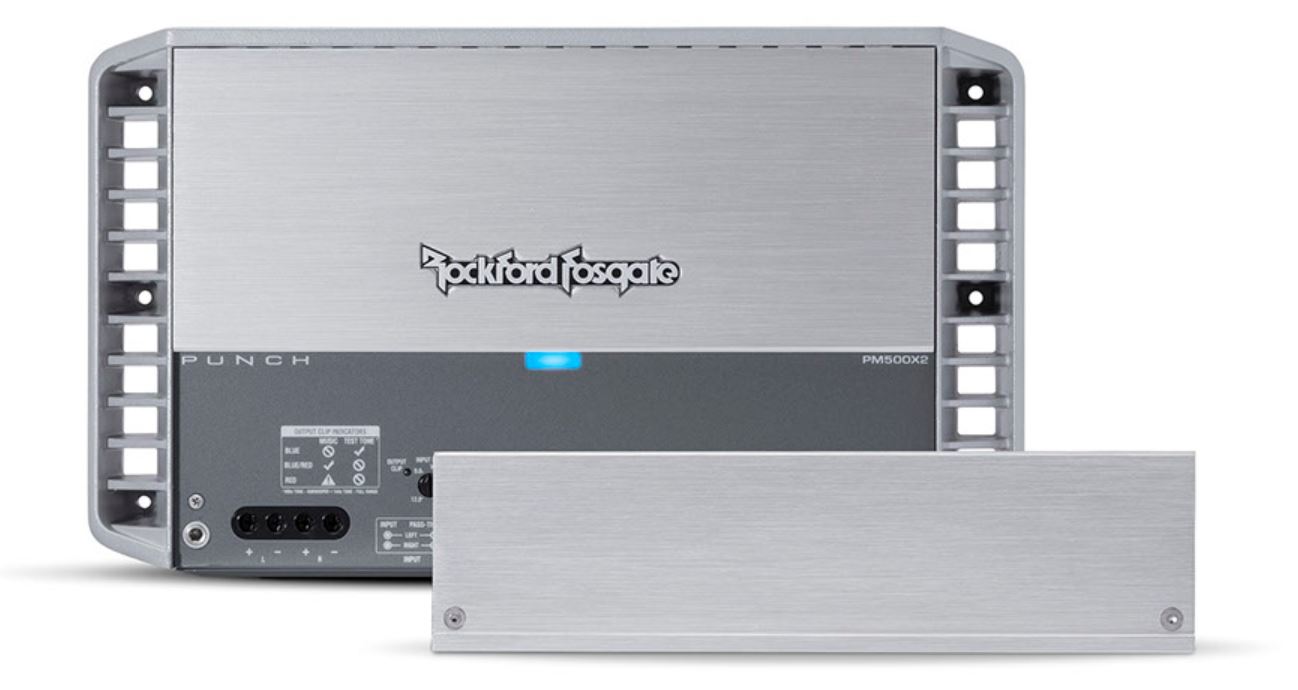

• Stealth control panel
• Cast aluminum heat sink
• Short circuit protection
• Overcurrent protection
• 2-part epoxy coated circuit board in marine quality
• Marine grade stainless steel fittings

Technical specifications

CEA-2006 rated power: 150 W x 2 at 4 ohms ≤ 1.0% THD + N.

Number of channels: 2

Total power: 500W

RMS power:

• 150 watts x 2 at 4 ohms
• 250 watts x 2 at 2 ohms
• 500 watts x 1 at 4 ohms bridged

Dynamic performance (PVC / PowerCube):

• 223 watts x 2 at 4 ohms 0 ° Res
• 365 watts x 2 at 2 ohms 0 ° Res

Frequency response: 20Hz-20kHz +/- 1.0 dB

Input sensitivity: 150 mV - 12 V.

Circuit topology class: Class A / B.

Efficiency (average): 73% at 4 ohms

Total harmonic distortion (THD + noise):

• 4 ohms: <1.0%
• 2 ohms: <1.0%

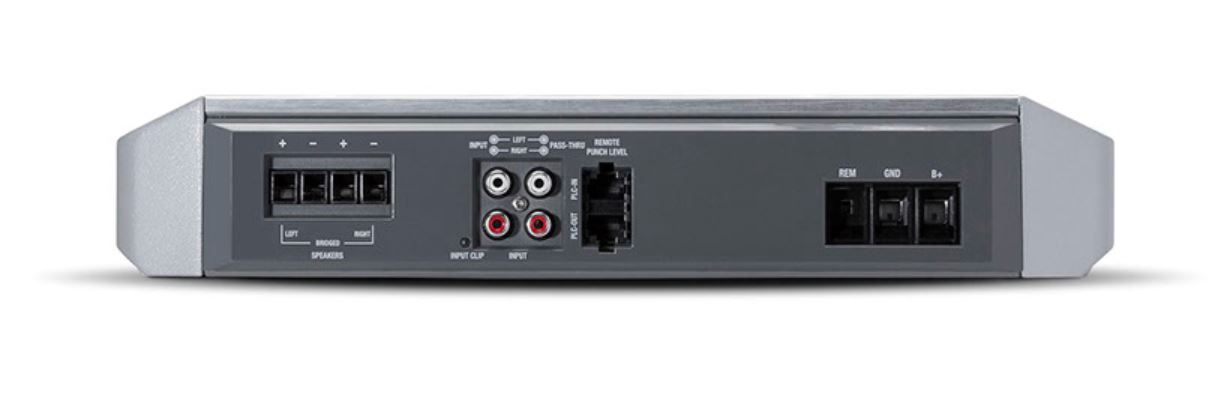

Signal input: Hi / Low Level: 1 RCA pair

Signal output: Low level: 1 RCA pair

Sound control:

• Punch EQ2 Bass: 0 dB to + 18 dB at 45 Hz and / or
• Punch EQ2 Treble: 0 dB to + 12 dB at 12.5 kHz The function depends on the position of the LP / AP / HP switch

Crossover:

• High-Pass: 50Hz - 250Hz at 12dB / octave Butterworth
• Low pass: 50 Hz - 250 Hz at 12 dB / octave Butterworth
• All pass

Remote controls: Optional Punch Level Control (PLC2) ready

Visual indicators:

• Power / Protect / Thermal LED
• Input clip LED 3
• Output clip LED - 1,2,3

LED color legend:

• 1 BLUE: <0.5% THD
• 2 VIOLET: 1% THD
• 3 RED: 10% + THD

Power Wire Gauge: 4 AWG

Power input connector: Captive C-Clamp
Speaker wire indicator: 8 AWG to 18 AWG

Speaker output connector: Captive C-Clamp

Cooling: convection

Heat sink: cast aluminum

Operating voltage: 9 - 16 VDC
Recommended fuse (not included): 80 A.
Average power consumption (13.8 V music): 40 A.

Dimensions (H x W x D): 6.05 x 19.71 x 33.73 cm

Shipping weight: 5.57kg
