- Order number: 02011PM1000x5
- EAN 780687345211

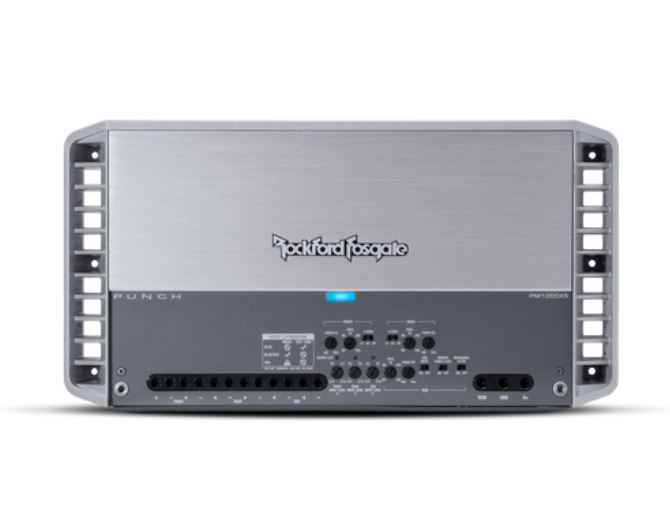

The PM1000X5 is a 1000 watt 5-channel amplifier with high dynamic performance and class a / b technology for the front / rear channels, class bd for the subwoofer channel and a conformally coated printed circuit board for motorsport and marine applications - and marine applications.
The PM1000X5 1000 watt 5-channel full range amplifier is the only amplifier you need to run your entire system. Turn on the dash speakers on the front channels, the back speakers on the rear channels and the subwoofers on the 5th channel! Known around the world for its raw performance, this amplifier offers higher efficiency and three-level protection that covers heat, overcurrent and short circuits.
- High-level input with automatic switch-on
- Features CLEAN facility
- Optional Punch2 remote control (PLC2) ready (with input clip display)
- Butterworth crossover with 12 dB / octave
- On-board punch EQ with + 18 dB boost at 45 Hz
- Switch on muted
- Stealth control panel
- Cast aluminum heat sink
- Short circuit protection
- Overcurrent protection
- Infrasonic filter
- 2/4 channel input switch
- Marine grade two-part epoxy coating on circuit boards
- Marine grade stainless steel fittings
Technical specifications
CEA-2006 rated power: 75 W x 4 +150 watt x 1 at 4 ohms ≤ 1.0% THD + N.
Number of channels: 5
Total power: 1000W
RMS power:
- 75 watts x 4 + 150 watts x 1 at 4 ohms
- 125 watts x 4 + 300 watts x1 at 2 ohms
- N / A + 500 watts at 1 ohm
Dynamic performance (PVC / PowerCube):
-
115 watts x 4+
299 watts x 1 at 4 ohms 0 ° Res - 190 watts x 4 + 540 watts x 1 at 2-Ohm 0 ° Res
- N / A + 863 watts x 1 at 1-ohm 0 ° Res
- Can be bridged via front and rear channels
Frequency response:
- Front / back: 20Hz - 20kHz +/- 3dB
- Sub: 20Hz - 500Hz +/- 3dB
Input sensitivity: 150 mV - 12 V.
Circuit topology class: Class A / B + Class BD (Sub)
Efficiency (average):
- Front / Back: 66% at 4 ohms
- Subchannel: 80% at 4 ohms
Total harmonic distortion (THD + noise): <1.0%

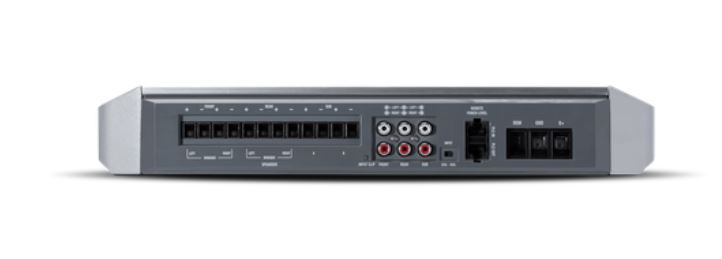

Signal input:
- Input switch: Hi / Low level input
- Input switch: 2/4-channel input Hi / Low-Level: 3 cinch pairs
- Sub: Front / Sub input switch
Tone control: Sub: 0 dB to + 18 dB at 45 Hz
Crossover:
- Front: 50 Hz - 250 Hz high pass at 12 dB / octave
- Rear: 50 Hz - 250 Hz high pass at 12 dB / octave
- Sub: 50 Hz - 250 Hz low pass
- Sub: 28 Hz infrasound filter at 12 dB / octave
Remote controls: Optional punch level control (PLC2) ready
Visual indicators:
- Power / Protect / Thermal LED
- Input clip LED 3
- Output clip LED - 1,2,3
LED color legend:
- 1 BLUE: <0.5% THD
- 2 VIOLET: 1% THD
- 3 RED: 10% + THD
Power Wire Gauge: 4 AWG
Power input connector: block
Speaker wire indicator: 12 AWG
Speaker output connector: block
Cooling: convection
Operating voltage: 9 - 16 VDC
Recommended fuse (not included): 150 A.
Average power consumption (13.8 V music): 75 A.
Max. Current consumption (13.8V Sinewave): 150 A.
Suggested alternator: 100 A.
Dimensions (H x W x D) 2.38 x 7.76 x 15.03 (inches) / 6.05 x 19.71 x 38.18 (cm)
Average power consumption (13.8 V music): 45 A.
Dimensions (H x W x D): 6.05 x 19.71 x 33.73 cm
Shipping weight: 5.8kg
quantity: | 1 piece |
Cinch Input: | 3 pair |
Housing color: | Silver |
Impedance (in Ohm): | 2,0 |
Channels: | 5 |
Speaker Outputs: | 5 |
Peak Power (in Watt): | 2000 |
Power RMS (in Watt): | 500 |
Product group: | Amplifier |
Amplifier Features: | Autosense, bass remote (optional), bridgeable, High-Level-Input, marine compatible, subsonicfilter |
