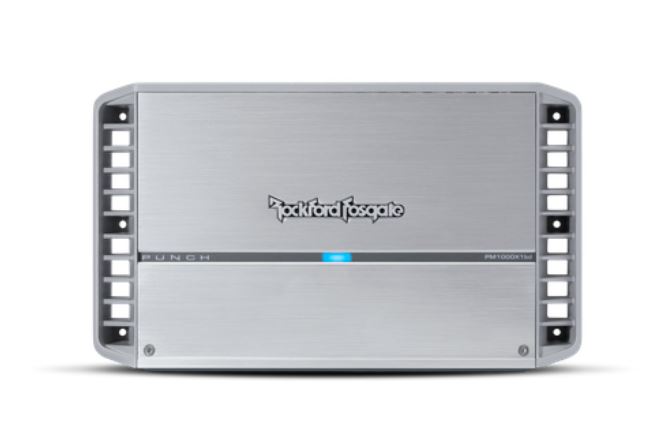

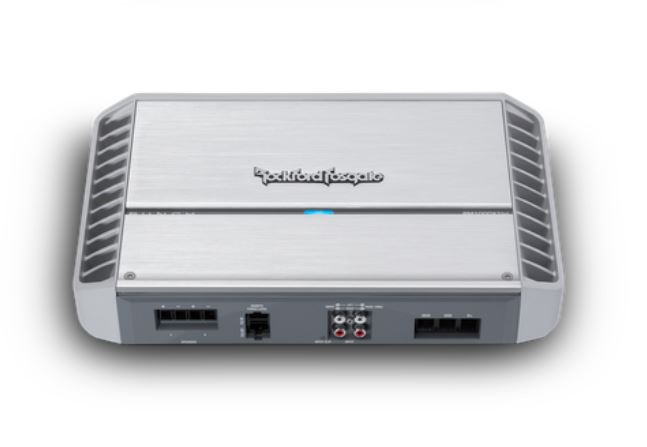

Rockford Fosgate Marine PM1000x1BD - Mono-Block digital

PM1000X1bd - Punch Marine 1000 watt class-bd mono amplifier

The PM1000X1bd is a 1000 watt mono amplifier with high dynamic performance using class bd technology and a conformally coated circuit board for motorsport and marine applications.

With its super-efficient Class BD circuit topology, the PM1000X1bd guarantees maximum BOOM for your money! Due to its special low frequency response, this amplifier is only optimized for mid-bass speakers or subwoofers. Don't worry, as the 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or the quad configuration of 2-ohm DVC subwoofers with ease.

• High-level input with automatic switch-on
• Features CLEAN facility
• Optional Punch2 remote control (PLC2) ready (with input clip display)
• Butterworth crossover with 12 dB / octave
• Cinch through outputs
• On-board punch EQ with + 18 dB boost at 45 Hz
• Switch on muted

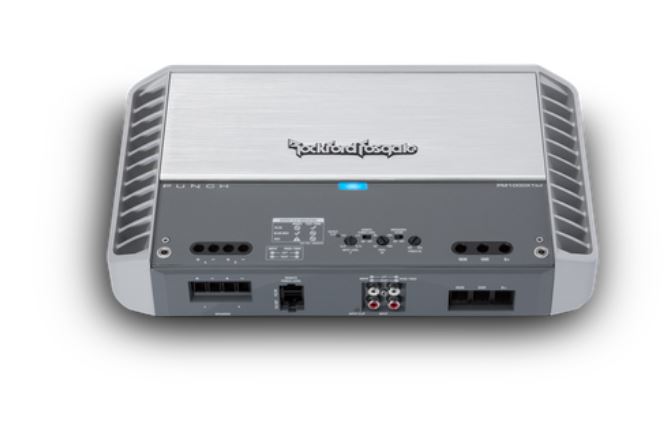

• Stealth control panel
• Cast aluminum heat sink
• Short circuit protection
• Overcurrent protection
• Infrasonic filter
• Marine grade two-part epoxy coating on circuit boards
• Marine grade stainless steel fittings

Specifications

CEA-2006 compliant: CEA-2006 nominal power 300 W x 1 at 4 ohms ≤ 1.0% THD + N.

Number of channels: 1

Power max .: 1000 watts

RMS power:

• 300 watts x 1 at 4 ohms
• 500 watts x 1 at 2 ohms
• 1000 watts x 1 at 1 ohm

PowerCube performance:

• 491 watts x 1 at 4 ohms
• 874 watts x 1 at 2 ohms
• 1,430 watts x 1 at 1 ohm

Frequency response: 20 Hz - 250 Hz +/- 1 dB

Input sensitivity: 150 mV to 12 V.

Circuit topology class: Class BD

Efficiency (average): 86% at 4 ohms

Total harmonic distortion (THD + noise):

• 4 ohms: <1.0%
• 2 ohms: <1.0%
• 1 ohm: <1.0%

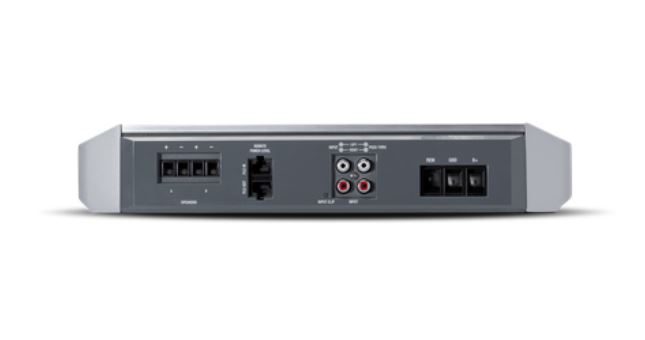

Signal input: High / Low Level: 1 cinch pair

Signal output: Low level: 1 RCA pair

Sound control:

• Punch EQ2 Bass: 0 dB to + 18 dB at 45 Hz

Crossover:

Low pass (LP): 50-250 Hz at 12 dB / octave Butterworth
Infrasound filter (IF): 28 Hz at 12 dB / octave

Remote controls:  Optional punch level control (PLC2) ready

Visual indicators:

• Power / Protect / Thermal LED

• Input clip LED 3

• Output clip LED - 1,2,3

LED color legend:
1 BLUE: <0.5% THD
2 VIOLET: 1% THD
3 RED: 10% + THD

Power Wire Gauge: 4 AWG

Power input connector: Captive C-Clamp

Speaker wire indicator: 8 AWG to 18 AWG

Speaker output connector:  Captive C-clamp

Cooling:  convection

Operating voltage: 9-16 VDC

Recommended fuse: 140 A.  ( not included)

Average power consumption (13.8V music): 65A

Max. Current consumption (13.8V Sinewave): 130A

Suggested alternator: 100A

Dimensions (H x W x D): 2.38 x 7.76 x 13.28 (inches) / 6.05 x 19.71 x 33.73 (cm)

Shipping weight:  12.9 lbs. (5.85 kg)
