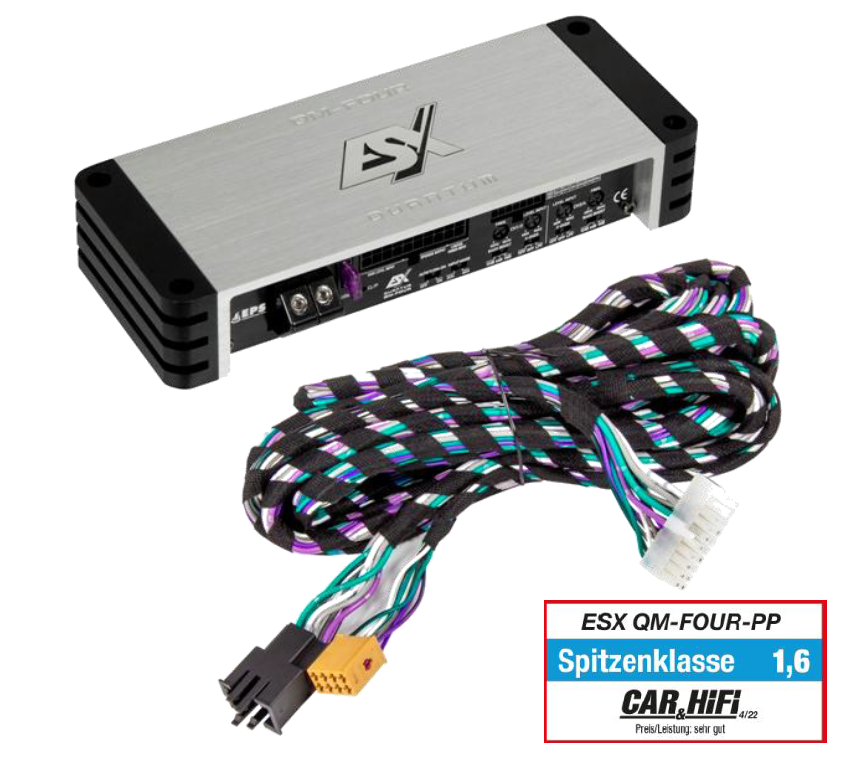

ESX QUANTUM QM-FOUR-PP - 4 channel CLASS D

QM-FOUR-PP 4-CHANNEL CLASS D

The roughly palm-sized 2-channel mini amplifier QUANTUM QM-TWO astonished ESX fans and car hi-fi connoisseurs immediately upon its launch. The small powerhouse with a whopping 240 watts RMS of power was immediately touted as an insider tip. After the improved V2 version topped that last year with an incredible 300 watts RMS of power, ESX is now following up with two additional models in the QM class: The powerful QM-FOUR amplifier is now available for 4-channel applications, and anyone wanting to drive a separate subwoofer can now opt for the new QM-ONE monoblock. Both power bars deliver a whopping 360 watts RMS and are visually perfectly matched. All models utilize modern and efficient Class D technology, combined with EPS®, top features, and perfect sound characteristics. The QM-ONE monoblock is not only visually the perfect partner for the QM-FOUR. If a separate woofer is also required, its application is clearly defined. With a whopping 360 watts RMS at 2 Ω, it provides ample power, and the bass level can even be conveniently adjusted via the remote control.

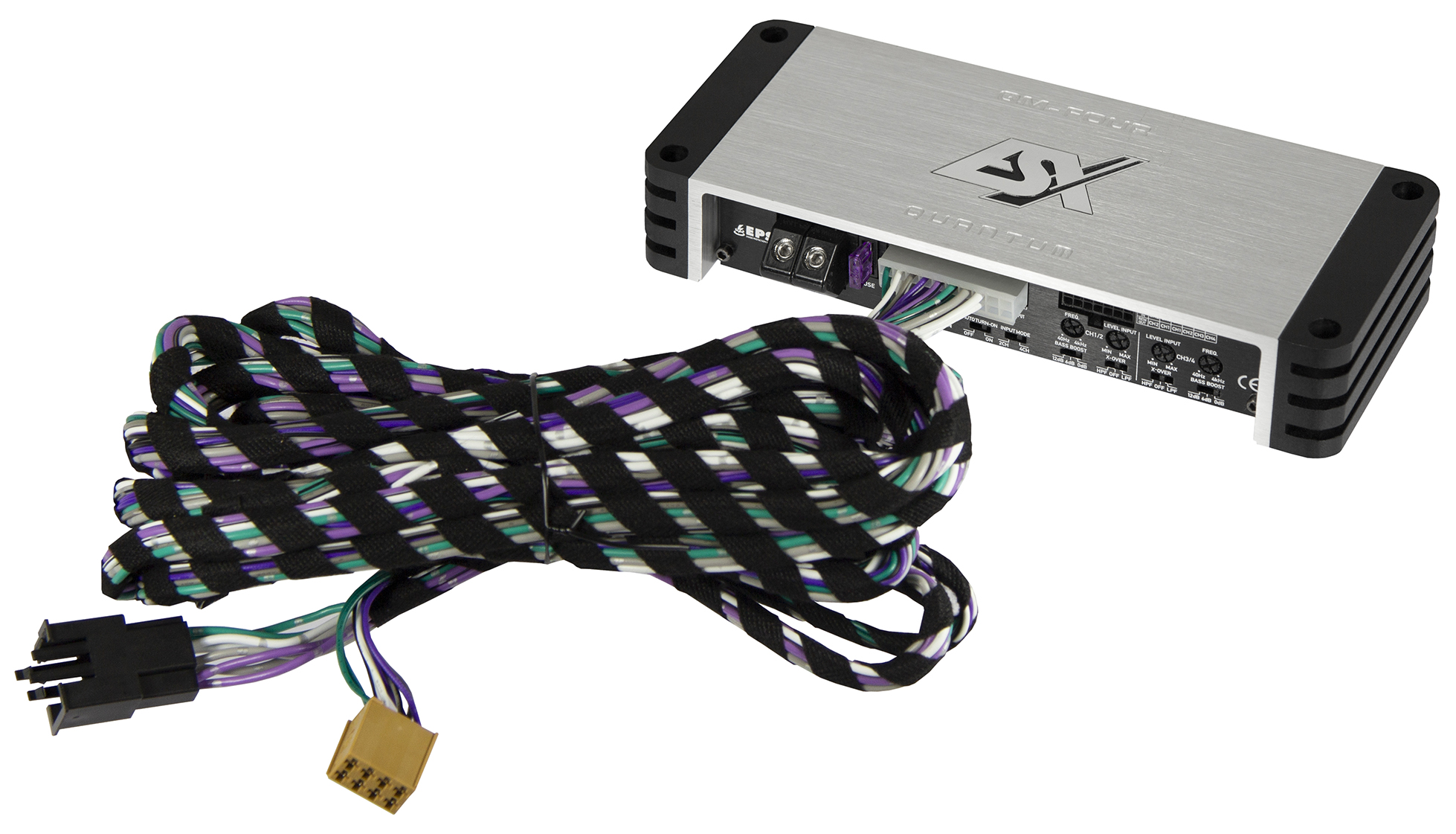

The QM-FOUR-PP Plug+Play Edition is ideal for amplifying a factory system. Only one condition must be met: The radio must be equipped with a modern Quadlock connector from the factory. The speaker connector insert can be easily removed and connected to the included 5-meter wiring harness of the QM-FOUR-PP. Finally, all that's left to do is supply the amplifier with power, and you're done!

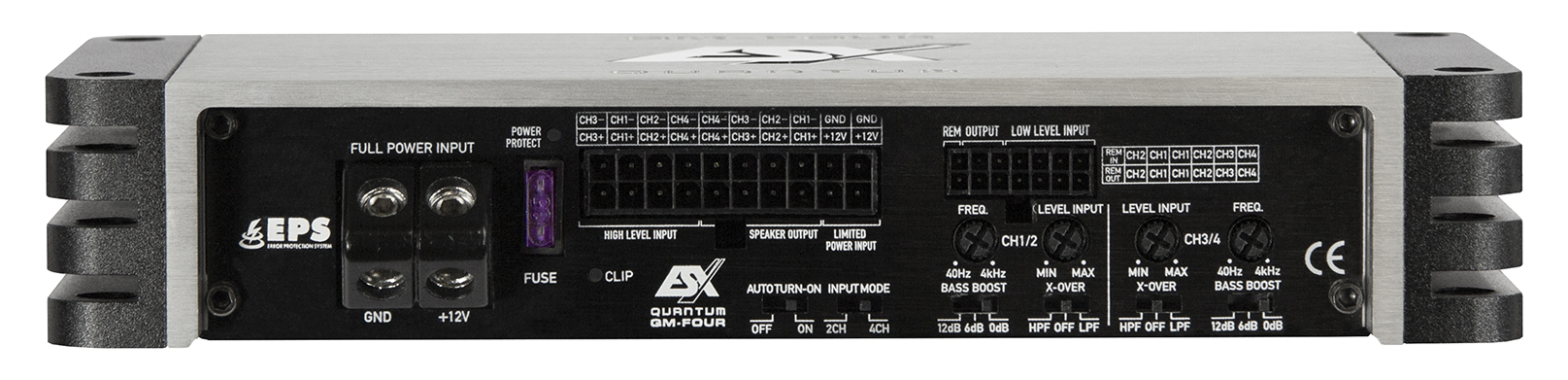

Features

• Adapter harness for Power Quadlock control units (5 m)
• Efficient Class D amplifier with ultra-compact dimensions
• Heavy-duty cast heatsink with optimal cooling properties
• Automatic power-on function
• High-level inputs with Error Protection System (EPS®)
• Start/Stop Ready
• Compact bass level remote control
• RCA inputs & Outputs (via cable connector)
• Clipping LED

Technical data

• 4-Channel Class D Plug+Play Mini Digital Amplifier
• 4 x 52/90 watts RMS @ 4/2 Ω
• 2 x 180 watts RMS @ 4 Ω bridged
• HPF/LPF 40 - 4000 Hz (CH1/2)
• HPF/LPF 40 - 4000 Hz (CH3/4)
• Bass Boost 0 / 6 / 12 dB (CH1/2)
• Bass Boost 0 / 6 / 12 dB (CH3/4)
• Input selector switch 2CH/4CH
• Dimensions 216 x 39 x 84 mm
• Efficiency up to 86%
