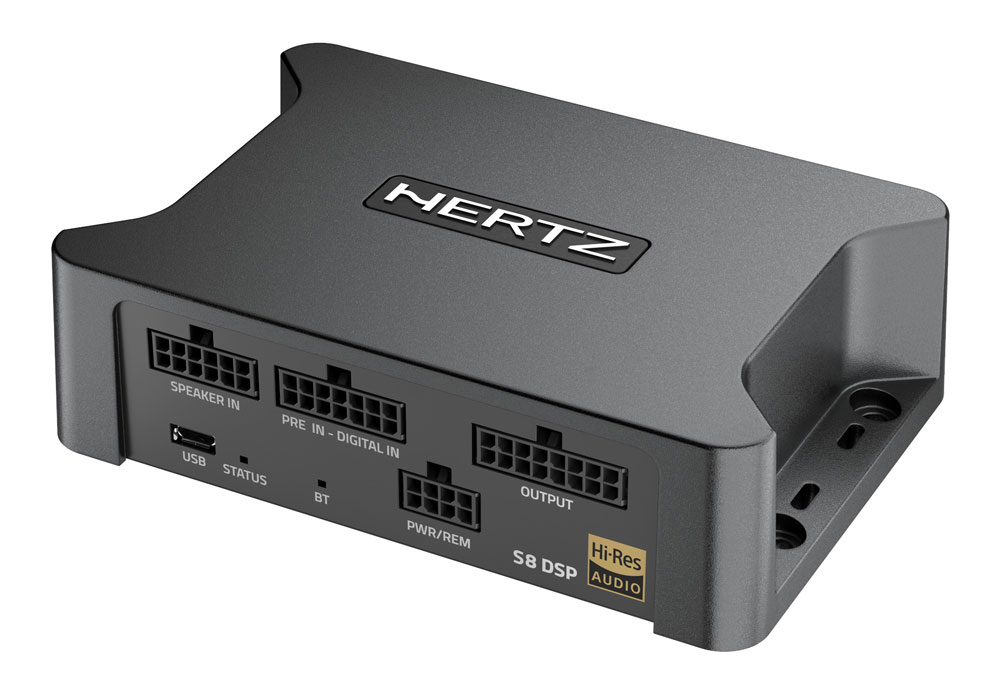

Digital DSP signal processor with 8-channel output

The ultra-compact S8 DSP is the perfect solution for integrating any OEM source into your audio upgrade project  for cars, motorcycles and boats! S8 DSP is the collected essence of technology at the service of the highest audio quality span> in a corrosion-free metal and composite housing.
The S8 DSP processes the audio signal with a resolution of  96 kHz / 24 bit and has Hi-Res Certification of JAS (Japan Audio Society), an award certifying the extreme level of audio performance achieved.
The powerful 32- Bit-DSP manages 6 analogue high/low-level input channels, one digital coaxial input and 8 output channels and offers the specialist maximum freedom of configuration.< br /> The coaxial SPDIF input is ideal for digital connection with a  Hi-Res player, a solution that allows maximum listening quality.
Each of the eight output channels has a level control, 15-pole parametric equalizer, time delays and crossover filters Available. The 7-band parametric equalizer of the input signal enables neutral playback of OEM sources , which often have an exaggerated emphasis on low frequencies.

Key Features

• Nominal Power supply voltage / fuse: 7 ÷ 20 VDC / 1A
• Pulse operating voltage:5 ÷ 24 VDC
• Idling current:0.34 A
• OFF current (ART= OFF):<80 uA
• OFF current (ART= ON):<80 uA
• Remote IN: 6 ÷ 20 VDC (10 mA)
• Remote OUT:4 ÷ 20 VDC (150 mA)< /li>
• ART - Automatic Remote Turn on/off from BTL speaker outputs (selectable):1.5 ÷ 7 VDC< /span>
• Power: 4Ohm

Inputs

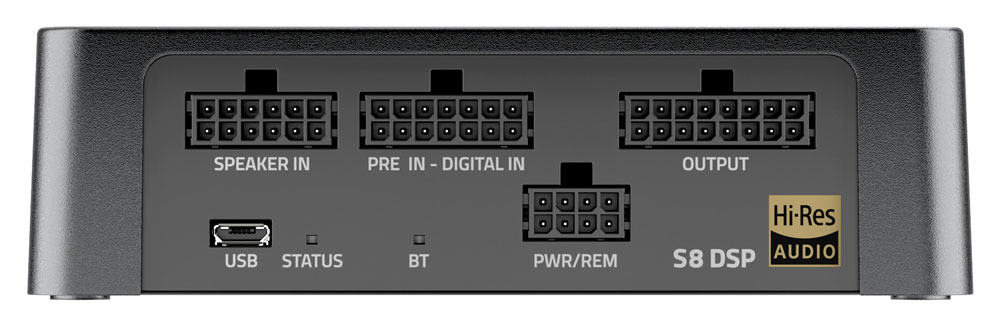

• Analog low level inputs:6 ch. (Differential input) (Molex microfit to RCAs)
• Analog high level inputs:6 ch. (Differential input) (Molex microfit to tripped ends) + USS (Universal Speakers Simulator)
• Digital inputs:Yes (Coaxial SPDIF; up to 24bit 96KHz) (Molex microfit to RCA)
• Input sensitivity (low level):0.8V – 6V RMS
• Input sensitivity (high level):2.5V – 21V RMS
• Analog inputs management:Audio input routing matrix type
• Analog inputs eq:7 bands paragraphic for each input channel< /span>
• ART:Automatic Remote Turn-On/Off with Speaker-In

Outputs

• Analog outputs (rca):8 channels

• Max output level (rms) @ 0.05% thd:4V
• 95dBAAnalog outputs management:The DSP controls each output channel: gain, crossover, EQ, delay, polarity< /span>
• Bandwidth:10Hz – 40KHz (+/-3db)
• Signal to noise ratio (A weighted):105dBA (Analog Input) 112dBA (Digital Input)
• HD+N (@ 1Vrms out, @ 1Khz):<0.005%
• Crosstalk (channel separation) (@ 1KHz):>95dBA

Digital Signal Processor

• Sample rate:96KHz
• Bit depth:24
• Output equalizer:15 bands per channel w/ adjustable Q and Frequency
• Equalizer resolution:1/10th dB per step +12dB / -12dB
• Time alignment (distance):0 ÷ 468.4 cm / 0 ÷ 184.4 inches< /span>
• Time alignment (time):0 ÷ 13.5ms
• Time alignment (step):0.08 ms; 2.8 cm / 1.1 inch

• Time alignment (fine set):0.02 ms; 0.7 cm / 0.27 inch
• Crossovers:AP/HP/LP/BP all channels
• Crossover type:Butterworth, Linkwitz-Riley, Bessel ( All Channels)
• Crossover slope:From 6dB/oct. until 30dB/oct. (6dB step)
• Crossover steps:120 steps 20Hz-20KHz
• Mute function:I can mute every channel separately or all together
• Presets: 4 presets< /span>
• Presets selection:2 specific wires to control the 4 presets selection by external switches
• Input selection by wire:One specific wire to select the desired input between Analog or Digital
• Audio signal compressor on output stage:Yes (enable/disable)< /li>
• DSP chipset:Analog Device: ADAU1451

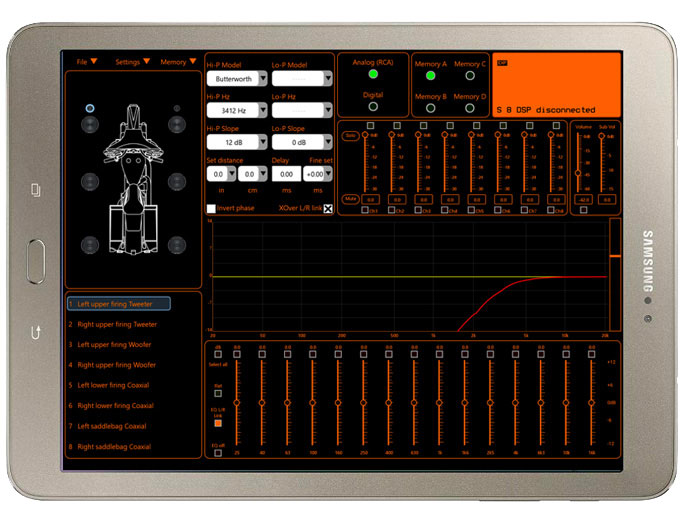

• DSP management by bt app (iOS/ Android): 1. CONFIGURATOR mode Mainly it'll allow the DSP tuning. You can manage every DSP function through your smartphone/tablet/PC/MAC. 2. DRC mode The BT device becomes a remote control by using the dedicated app with a simple graphical user interface. Manage volume level, SUB level, select different setup files, upload a new setup file< /span>
• Setup file sharing via bt:Upload a setup file via BT through the BT APP when in “Configurator” or “DRC” mode

• DSP management by pc / mac / ios / android:Windows OS: Windows 10 - Macintosh OS: macOS 10.13 High Sierra or later - Android OS: version 7 or later iOS: version 12 or later

Physical Specifications

• Max size W x H x D (mm/inch): 130x37x88.3/ 5.12x1.45x3.48
• Weight (kg/lbs):0.66/1.45
