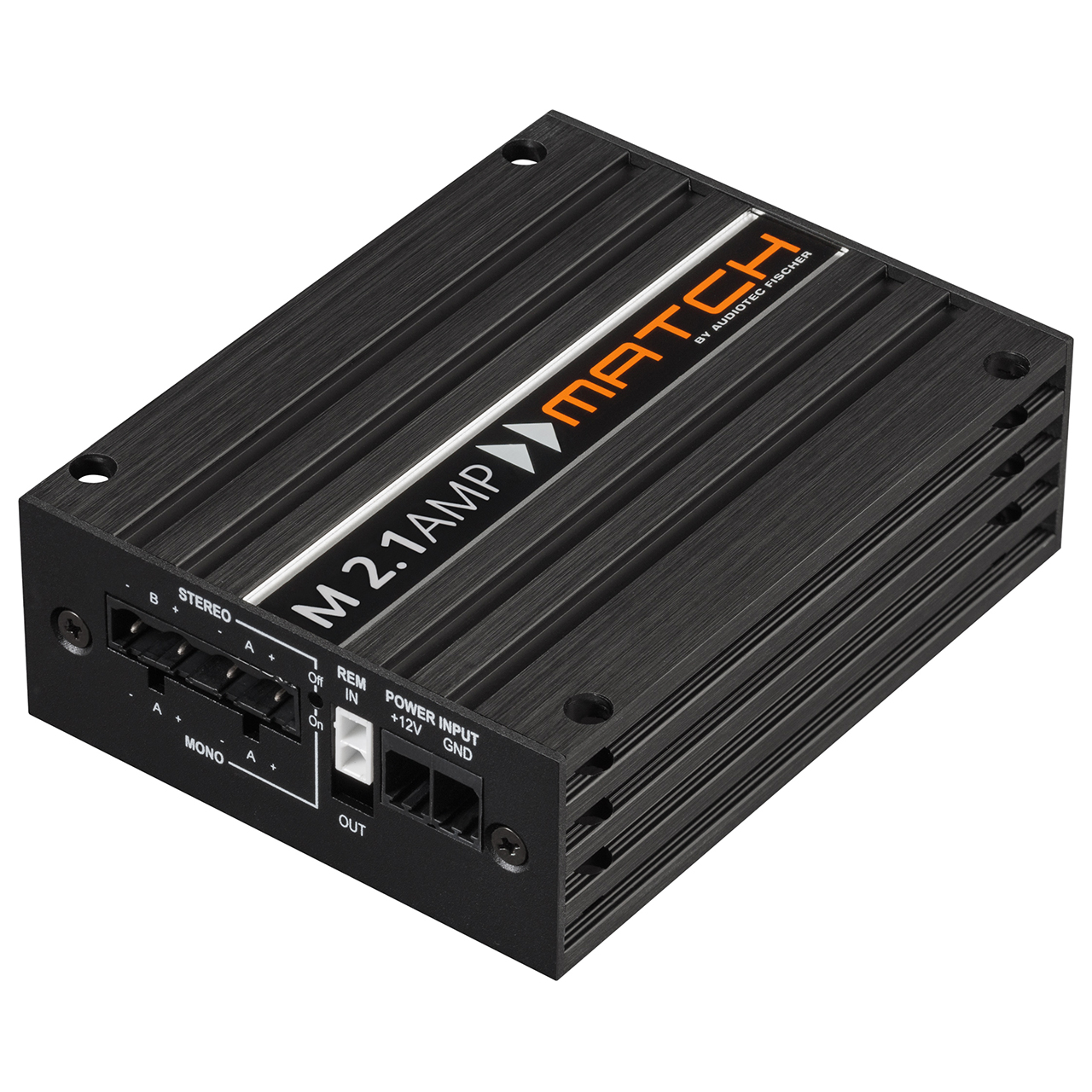

Match M 2.1AMP

Preview: Match M 2.1AMP - 2-channel amplifier

5% discount

If you buy 1 of the products of this action, you will receive a discount of 5% .

€399.00 *

Prices incl. VAT plus shipping costs

available,
Delivery time appr. 1-2 working days

Seen cheaper? Artikel günstiger gesehen?

Order number: 02055M21AMP

MATCH M 2.1AMP Excellent sound quality combined with maximum efficiency The M... more

Close menu

Product information "Match M 2.1AMP - 2-channel amplifier"

Excellent sound quality combined with maximum efficiency

The M 2.1AMP is the ultimate compact powerhouse for 1-channel or 2-channel applications when installation space is limited. Whether as a 2-ohm stable mono subwoofer amplifier or even as a particularly powerful stereo amp for driving passive component systems or power-hungry woofers - this highly efficient powerhouse delivers up to 700W of output power despite its minimalist dimensions. So much power in the smallest space is made possible by Audiotec Fischer's proprietary Class HD technology, which guarantees sensational efficiency and the lowest possible heat development.

Performance on demand

The switchable mono / stereo operation makes the M 2.1AMP a multifunctional tool.
In mono mode it is ideal for driving powerful subwoofers with a minimum impedance of 2 ohms - in stereo mode it is the perfect choice for driving even power-hungry front or rear speaker systems. Thanks to its high-res audio bandwidth, it also sounds like a giant and leaves nothing to be desired.

Maximum flexibility in minimal space.

In modern vehicles, the space available for sound upgrades is becoming increasingly limited and poses great challenges for installers, especially with multi-device setups.
Thanks to the minimal dimensions, MATCH micro< /em> amplifiers like the M 2.1AMP even in the most difficult of spaces. This opens up new, unimagined possibilities when choosing the installation location and makes space-saving and hidden installation concepts possible.

Features

Highly efficient Class HD power amplifier with mono / stereo mode

Mono mode: 1 x 350 watts RMS @ 2 ohms - optimal for driving powerful subwoofers with a voice coil
Stereo mode: 2 x 170 watts RMS @ 4 ohms - optimal for driving powerful front or rear speaker systems or a subwoofer with dual voice coil

Excellent sound quality combined with maximum efficiency
Minimal dimensions for space-saving and hidden installation concepts
2-channel RCA input
"Ground Input" switch to avoid ground loops
Can be perfectly combined with MATCH UPGRADE DSP amplifiers

Special Features:

Mono / Stereo mode

The M 2.1AMP amplifier is equipped with a mono / stereo mode. Depending on the application, this allows the amplifier to be configured as a 2-ohm mono amplifier or as a 4-ohm 2-channel amplifier. In both operating modes, the M 2.1AMP delivers an extended audio frequency response of over 40 kHz for unsurpassed sound quality thanks to its high-res capability.

Class HD technology

In the M 2.1AMP, the advantages of Class H technology are combined with the principle of a Class D amplifier. The result is an unsurpassed level of efficiency that once again surpasses conventional Class D amplifiers. The advantages of the Class HD concept come into play at low and medium modulation levels, since the power pack regulates the internal supply voltage of the power stages depending on the amplitude of the input signal. This drastically reduces the average power loss generated by the amplifier.

Start-Stop Capability

The power pack in the MATCH M 2.1AMP amplifier ensures the internal power supply even in the event of short-term dips down to 6 volts. This ensures that the M 2.1AMP remains fully functional even when the engine is started.

Specifications

Power RMS	Mono mode	Stereo mode
- @ 4 ohms	1 x 210 watts	2 x 170 watts
- @ 2 ohms	1 x 350 watts	-
- @ 1 ohm	-	-
- bridged to 4 ohms	-	-
- bridged to 2 ohms	-	-
Max. Performance (Mono Mode)	Up to 430 watts RMS @ 2 ohms
Amplifier Technology	Class HD
Inputs	2 x RCA 1 x Remote In
Input Sensitivity	RCA 1 - 6 volts
Input impedance RCA	10 kOhm
Input impedance high level	-
Outputs	2 x speaker output 1 x remote out
Output voltage RCA	-
Signal converter for the digital input	-
Frequency range	10Hz - 40,000Hz
Bass Boost	-
High pass	-
low pass	-
Bandpass	-
Subsonic	-
Phase	-
Slope high/low pass	-
Slope subsonic / low pass	-
Signal-to-noise ratio digital input	-
Signal to noise ratio analog input	108 dB (A-weighted)
Total Harmonic Distortion (THD)	< 0.02%
Damping Factor	100
Operating Voltage	10.5 - 17 volts (max 5 sec down to 6 volts)
No-load current draw	500mA
Backup	1 x 30A LP Mini Fuse
Power consumption	DC 12V ⎓ 40A max.
Additional Features	Variable input sensitivity, regulated power supply, start-stop capability, ground switch, mono / stereo mode
Dimensions (H x W x D)	35x85x110mm

Scope of delivery

1 x MATCH micro-amplifier M 2.1AMP
1 x line input-to-cinch adapter
1 x mounting material
1 x user manual

quantity:	1 piece
Impedance (in Ohm):	2,0, 4,0
Power RMS (in Watt):	170, 350
Amplifier Features:	bridgeable
