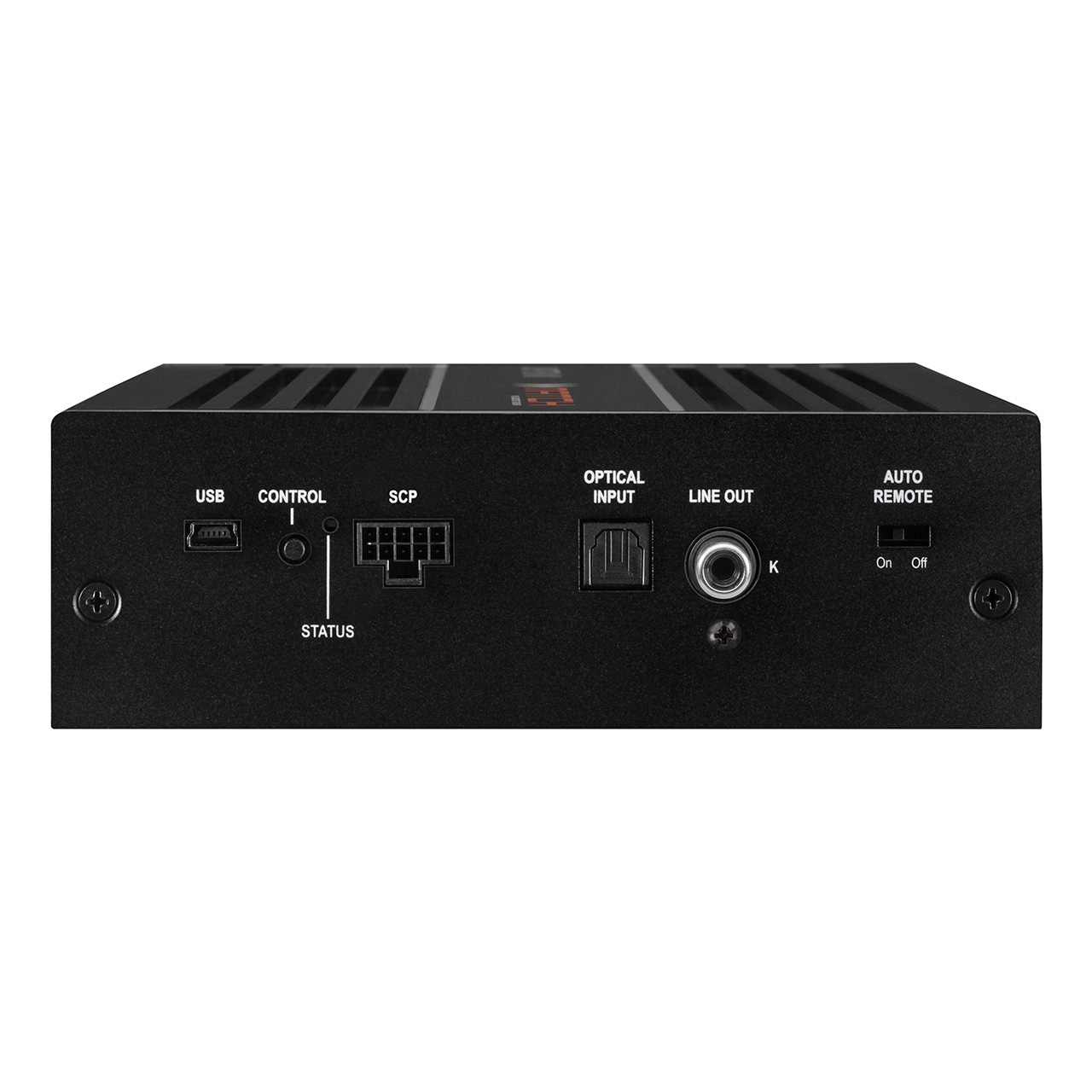

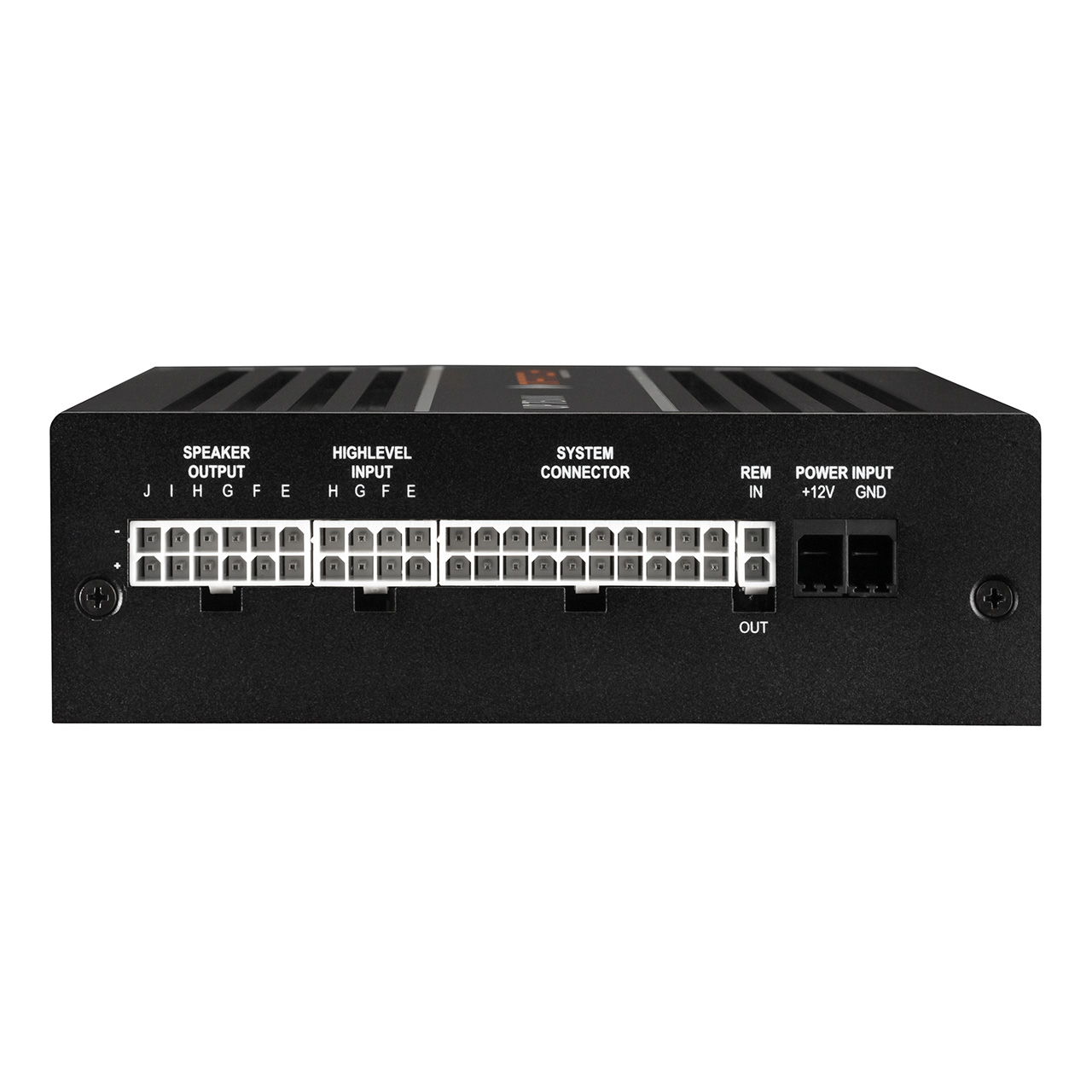

MATCH UP 10DSP
The premium sound upgrade for multi-channel factory systems
The new UP 10DSP is a real problem solver when it comes to upgrading premium sound systems in today's vehicles. Even though more and more vehicles are equipped with complex multi-channel sound systems ex works, the sound quality does not always meet your expectations.
In many cases, replacing existing components is no longer possible, so all you need to expand is an amplifier with one large number of high-level inputs and sophisticated technology comes into consideration. And here the new UP 10DSP offers the perfect solution.
Maximum sociability
For optimal adaptation to existing multi-channel sound systems, the UP 10DSP has no less than 8 high-level inputs (two Each piece can withstand up to 32 V), an optical digital input, a MATCH extension card slot, 10 amplifier outputs and a total of 11 processed DSP channels.
In addition, intelligent technologies such as the proprietary ADEP.3 circuit and the 32 Bit ACO platform, secure operation.
Virtual Channel Processing – this is how signal routing works today
Adapting to modern factory sound systems means that an increasing number of signal inputs is becoming increasingly complex Signal routing in the amplifier is essential. Especially when several input signals are mixed together and then broken down into multi-way systems, traditional routing concepts quickly reach their limits. Audiotec Fischer's new, multi-stage "Virtual Channel Processing", in conjunction with the recognized user-friendly DSP PC tool software, makes it possible to easily map even highly complex system configurations and to freely assign the proprietary FX sound features such as "RealCenter" or "Dynamic Bass Enhancement". to be able to. But thanks to its enormous number of channels in conjunction with the optional MEC ANALOG IN module, the UP 10DSP is also a prime example of applications where 1 to 1 routing (IOR) makes sense.
Speed is everything - thanks to ACO
Such a huge number of channels requires ultra-fast hardware - Audiotec Fischer's proprietary 32-bit ACO platform takes over all control tasks and ensures plenty of speed, especially when it comes to data communication with our DSP PC tool software, but also with the lightning-fast switching between up to ten possible sound setups. The fantastic sound effects associated with the ACO platform such as Augmented Bass Processing, StageXpander or RealCenter are just as obvious with the UP 10DSP as an 8-channel input EQ including input signal analyzer (ISA) for easy analysis and compensation of the input signals from OE radios .
Power package in a compact format
Despite the concentrated power of 8 x 65 at 4 ohms and 2 x 90 / 160 watts at 4 / 2 ohms on the sub out as well as the huge range of functions The UP 10DSP has an extremely compact design, so that installation is possible even in confined spaces.
Features
- Highly efficient 10-channel amplifier with 1-channel line output and 11-channel DSP
- Perfect for upgrading multi-channel factory sound systems
- Optional wiring harnesses for easy integration into existing multi-channel factory sound systems
- Extremely powerful 64 bit “Fixed Point” audio DSP < li>ACO - Advanced 32 Bit CoProcessor platform for system and DSP features:
- ISA (Input Signal Analyzer) and InputEQ for easy analysis and compensation of input signals < li>SFX sound effects – Augmented Bass Processing, StageXpander, RealCenter & Co.
- Heavy-duty 8-channel high-level input with ADEP.3 circuitry - including two inputs with up to 32 V RMS input sensitivity
- 1 to 1 channel routing option (IOR) in conjunction with the optional MEC ANA-LOG IN module - same number of high-level inputs and amplifier channels
- Virtual Channel Processing (VCP) enables highly complex sound systems to be configured even more flexibly < li>MEC slot for system expansions such as Bluetooth
- Audio streaming, high resolution audio streaming via USB etc.
- Optical SPDIF Input with a sampling rate between 12 and 96 kHz
- Mono RCA output for connecting additional amplifiers, e.g. a subwoofer amplifier
- SCP (Smart Control Port) for optional accessories, such as WIFI CONTROL, DIREC-TOR, CONDUCTOR & Co.
- Auto Remote Switch
- Start-stop capability down to 6 volt supply voltage
- Extremely compact dimensions and low heat generation thanks to very high efficiency < li>Including MEC ANALOG IN module
Special features
Class GD technology
Audiotec Fischers The unique Class GD concept combines the advantages of Class G technology with the principle of a Class D amplifier.
This results in an unusually high level of efficiency that even exceeds conventional Class D amplifiers. The Class GD concept shows its advantages at low and medium levels by gradually varying the internal supply voltage of the power stages depending on the amplitude of the input signal. This drastically reduces the average power loss generated by the amplifier.
ACO – Advanced 32 Bit CoProcessor
The MATCH UP 10DSP amplifier uses a special amplifier for all internal and external control and communication tasks powerful 32-bit CoProcessor of the latest generation. In contrast to the 8-bit processor used previously, this results in significant speed advantages not only when switching between different sound setups but especially in data communication with our DSP PC tool software. Another significant advantage is the CoProcessor's integrated, native bootloader. This enables software upgrades of all components of the DSP, for example in order to be able to adapt the microcontroller-controlled ADEP.3 circuit to future changes in diagnostic systems of factory radios or to expand the device with additional interfaces. In addition, thanks to the new flash memory, the ACO offers space for 10 sound setups instead of the usual two.
Intelligent high-level input ADEP.3
Modern, factory-installed car radios are used for diagnosis the connected speakers are becoming increasingly intelligent. The latest generation in particular is equipped with additional monitoring functions, so that error messages or even malfunctions can occur when an additional amplifier is connected. The new ADEP.3 circuit (Advanced Diagnostics Error Protection Generation 3) prevents these problems without unnecessarily loading the radio's speaker outputs at high levels.
Start-stop capability
The power supply in UP 10DSP amplifier ensures the internal power supply even in the event of short-term drops down to 6 volts. This ensures that the amplifier remains fully functional even when the engine is started. If the on-board voltage falls below 10.5 volts for longer than 5 seconds, the amplifier goes into “Protect Mode” (status LED lights up red permanently) to prevent further battery discharge.
Automatic Digital Signal Detection
The UP 10DSP allows signal-controlled switching between the analog and digital inputs. As soon as an audio signal is detected at the optical input, the amplifier switches to this input. This function can be activated in the DSP PC tool software or alternatively manual control can be selected using an optionally available remote control.
Power Save Mode
The Power Save mode is permitted The aim is to drastically reduce the power consumption of the UP 10DSP (and any additionally connected amplifiers) if there is no input signal for longer than 60 seconds. As soon as the “Power Save Mode” is active, the internal amplifier stages of the UP 10DSP and the remote output are switched off, thus significantly reducing the power consumption. The amplifier returns to normal operating mode within 2 seconds as soon as a music signal is present at its input. The switch-off delay can be varied or completely deactivated using the DSP PC tool software.
DSP Features
RealCenter
The “RealCenter” function is a proprietary algorithm from Audiotec Fischer that highlights the monaural information of the left and right front channels in order to to create a unique center signal. In contrast to usual methods in which the channels are simply summed up, here there is also dynamic control of the center signal through the stereophonic information content of the left and right channels. This means that the center channel does not reproduce a signal if only the left or only the right channel delivers an audio signal. With usual algorithms, the center channel would only be 6 dB quieter in this case. Audiotec Fischer's “RealCenter” enables a unique, wide-ranging stage image - and that's equally optimal for the driver and front passenger! The disadvantages of a conventional center channel, such as an intrusive, narrow spatial sound representation, are finally a thing of the past.
Augmented Bass Processing
Audiotec Fischer's proprietary “Augmented Bass Processing”, consisting of the two revolutionary sound features: “Dynamic Bass Enhancement” and “SubXpander”. These have been specially developed to dramatically improve the bass reproduction of subwoofers.
"Dynamic Bass Enhancement" ingeniously combines maximum deep bass foundation and high maximum sound pressure - regardless of the type of music you are listening to or the sound settings on the radio. Depending on the input signal, “Dynamic Bass Enhancement” amplifies the lower frequency range on the one hand and varies the cutoff frequency of the subsonic filter on the other. The result is a much more powerful, deeper bass reproduction at low and medium volumes without the risk of mechanically or electrically overloading the subwoofer at high volumes. It's simply fascinating what bass performance is suddenly possible.
If you want the low frequency range to be a little deeper and "blacker", you can also activate the "SubXpander". Here, additional subharmonic tones are mixed into the basic tones in the frequency range between 50 and 100 Hz.
StageXpander
Depending on the arrangement of the speakers in the vehicle, there can be more or less in the front seats Realize a wide stereo stage. If a center speaker is also installed, this can sometimes additionally limit the spatial representation of the music. This is where Audiotec Fischer's new "StageXpander" comes in - a sound feature that seems to remove the acoustic boundaries and thus enables a significantly wider stereo base without negatively affecting the precision in localizing voices or instruments. The effect can be adjusted to your personal taste in four levels.
ClarityXpander
Would you like more transparency and substance in the high-frequency reproduction? Audiotec Fischer now offers exactly the right tool for this with the “ClarityXpander”. When dosed correctly (and therefore selectable in three levels), it gives the overtones additional radiance - particularly useful if the original speakers lack the necessary shine in the high frequency range let. The extra high-frequency kick is not only available for the two front channels, but can also be adjusted separately for the center channel. And because a little too much of the latter in combination with music material rich in overtones tires your hearing, automatic, dynamic control of the additional overtone component can even be activated here.
Technical data
| UP 10DSP incl. MEC ANALOG IN | |
| Performance RMS | |
| - @ 4 Ohm | Channel A - H: 8 x 65 watts (min. 3 Ohm) |
| - @ 2 Ohm | -< nonbreakingspace/> |
| - @ 1 Ohm | -< nonbreakingspace/> |
| - bridged to 4 ohms | - |
| - bridged to 2 ohms | - |
| - Subwoofer output at 4 ohms | Channel I - J: 2 x 90 watts |
| - Subwoofer output at 2 ohms | Channel I - J: 2 x 160 watts |
| Amplifier technology | Class GD |
| Inputs | 10 x high level speaker input 1 x Optical SPDIF (12 - 96 kHz) 1 x 3.5mm low level stereo input< br />1 x Remote In |
| Input sensitivity | Channels A - F: 4 - 16 volts Inputs MEC ANALOG IN: |
| Input impedance RCA | - |
| Input impedance high level | 9 - 33 ohms with ADEP .3 |
| Outputs | 10 x speaker output 1 x Cinch 1 x Remote Out |
| Output voltage Cinch | 3 volts |
| Frequency range< /strong> | 20 Hz - 22,000 Hz |
| < strong>DSP resolution | 64 bit |
| DSP computing power | 295 MHz (1.2 billion MAC operations/second) |
| Sample rate | 48 kHz |
| DSP Type | Audio Signal Processor |
| Signal converter | A/D: BurrBrown D/A: BurrBrown |
| Signal/noise ratio digital input | 105 dB (A-weighted) |
| Signal/noise ratio analog input | 103 dB (A-weighted) |
| Total Harmonic Distortion (THD) | < 0.03% |
| Damping factor | > 100 |
| Operating voltage | 10.5 - 17 volts (max. 5 seconds down to 6 volts) |
| Power consumption | DC 12 V ⎓ 60 A max. |
| < strong>No-load current consumption | 500 mA |
| Max.Remote output current | 500 mA |
| Fuse | 2 x 25 A LP mini plug-in fuse |
| Additional features | Class GD technology with dynamically controlled power supply, 32 bit CoProcessor, ADEP.3 circuit, start-stop capability, Smart Control Port, USB, MEC slot, auto remote switch, galvanically isolated line out |
| Dimensions (H x W x D) | 46 x 145 x 163 mm |
Scope of delivery
1 x MATCH UPGRADE amplifier UP 10DSP incl. MEC ANALOG IN
2 x connection cable
1 x Control Input- to-SCP adapter
1 x mounting plates & -material
1 x USB cable
1 x user manual
| quantity: | 1 piece |
| Cinch Input: | 1 pair |
| Impedance (in Ohm): | 2,0, 4,0 |
| Power RMS (in Watt): | 65 |
| Product group: | Amplifier |
| Amplifier Features: | integrated DSP, High-Level-Input |
