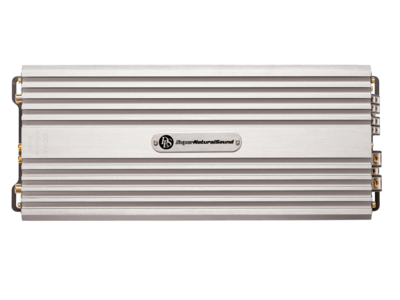

DLS Reference CA-CCi44 - 4-channel amplifier

The new, improved CCi44 is a small and powerful amplifier with an output of 4 x 110 watts RMS and even 2 x 220 watts in mono bridge circuit.
A great sounding amplifier for amateurs and professionals.
Built-in/switchable low-pass and high-pass filters.
Attenuation factor >300
Signal-to-noise ratio, A-weighted: 110 dB< br />THD at 5W, 1kHz. <0.02%
Built-in protection circuits shut down the amplifier in case of overload.
High level input with auto start
Use it for a front system and a subwoofer.

Specifications

• Number of channels 4
• Amplifier class AB
• Output power in 2 ohms 4 x 110 watts
• Output power in 4 ohms 4 x 85 watts
• Mono bridge operation 4 ohms 2 x 220 watts
• Damping factor >300
• S/N ratio, A-weighted >110 dB
• Frequency range 10 Hz - 60 kHz
• Input sensitivity 1 - 4 volts
• Input impedance 6 kOhm
• Input impedance, high level 45 ohms
• High level input with autostart Yes
• Integrated fan Yes
• Filters channel A and B HP 50-500 Hz, LP 50-500 Hz
• Filters channel C and D HP 50-500 Hz, LP 50-500 Hz
• Power consumption (idle) 0.7 A
• Power consumption (maximum) 64 A
• Fuses use an external fuse 60A
• Dimensions (W x D x H) 129 x 320 x 54 mm (5.1" x 12.6" x 2.1")
• Weight 2.4 kg
