- Order number: 02050CP1.700
- EAN 8018823142410
KP 1,700

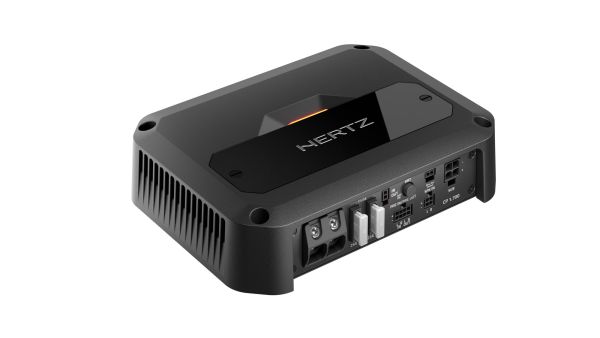

Enhance your audio system with the Hertz CENTO POWER CP 1,700, a mono amplifier that combines exceptional performance with advanced sound control technologies.
With an excellent power-to-size ratio and an efficiency of over 89%, this amplifier is suitable for a wide voltage range, making it ideal for both conventional and electric vehicles.
The CP 1.700 offers additional sound customization features, including variable phase control, which allows the audio output to be perfectly tuned to your needs.
Its high noise rejection and balanced input circuitry preserve sound integrity, while the integrated full-range pre-out function allows for flexible system expansion.
With its elegant design, robust construction and easily accessible top-panel controls, the CP 1.700 is the ideal choice for audiophiles looking to push the boundaries of their car audio system.
Up to 89% efficiency thanks to the ADC (Advanced D-Class) output stage.
Thanks to the integrated USS (Universal Speakers Simulator) technology, DIECI POWER amplifiers can be easily connected to head units with a “Speaker Load Detection” function, which monitors the presence of a low impedance load to activate the audio outputs.
Cento Power amplifiers are ultra-compact and allow effortless installation in the increasingly tight spaces of modern vehicles or in the area of the factory amplifiers.
Technical specifications
Main features
- Channels 1
- Amplifier class D
- POWER SUPPLY
- Nominal supply voltage (fuse) 11 ÷ 15 VDC (2 x 25 A)
- Operating voltage 9 ÷ 18 VDC
- No-load current 1.10 A
- Standby current consumption 4.5 uA
- Consumption, MIN load impedance (max. music power) 33 A
- Remote input 4 ÷ 17 VDC (1 mA)
- ART - Remote automatic on/off via SPK-IN (BTL radio only) 1.5 VDC
- Efficiency 89%
- AMPLIFIER STAGE
- Distortion - THD @ 100 Hz, 70% rated power 0.01 %
- Damping factor @ 1 kHz, 1W 350
- Bandwidth @ -3 dB 10 Hz ÷ 500 Hz
- S/N ratio (A-weighted @ 1 V Input) 113 dBA
- Minimum load impedance
- @ 1 Ch: 2 Oh
- Adjustable crossovers yes
Output power
- Output power (RMS) at 1% THD:
- 1 channel @ 4 Ω 400 W x 1
- 1 channel at 2 Ω, 700 W x 1
- Total power 700 W
Input / Filter
- Inputs Pre-In / Speaker-In
- Pre Out Hi-Pass 50 ÷ 250 Hz at 12 dB/oct.
- Pre-In Sensitivity 0.32 ÷ 8 VRMS
- Speaker Input Sensitivity 1.6 ÷ 40 VRMS
- Sub-Channel Low Pass OFF / 50 ÷ 250 Hz at 24 dB/oct.
- Bass Boost 50 Hz 0 ÷ 9 dB
- Subsonic Hi-Pass OFF / 25 Hz at 24 dB/oct.
- Sub Remote Volume Control -20 ÷ 6 dB (Active on rear channel with LPF ON)
quantity: | 1 piece |
Cinch Output: | 1 pair |
Housing color: | black |
Impedance (in Ohm): | 2,0 |
Channels: | 1 |
Speaker Outputs: | 2 |
Peak Power (in Watt): | 1400 |
Power RMS (in Watt): | 700 |
Product group: | Amplifier |
Amplifier Features: | bass remote (optional) |
